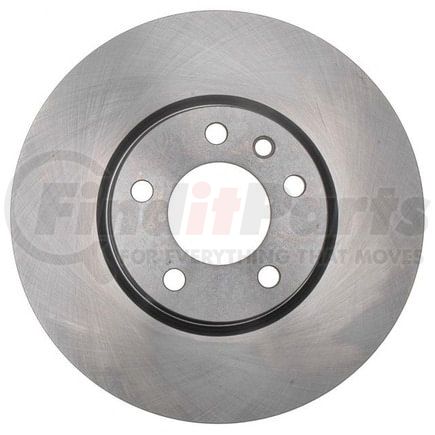

Raybestos 56652R - Raybestos R-Line Brake Rotor
$5599
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
RAYBESTOS part description
Product Description
Raybestos R-Line Brake Rotor
Application Summary
2001-1997 Cadillac Catera Front
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.756 IN |
| Center Hole Diameter | 70 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.984 IN |
| Discard Thickness | 25 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Mounting Bolt Hole Circle Diameter | 110 MM |
| Mounting Bolt Hole Diameter | 0.56 IN |
| Mounting Bolt Hole Diameter | 14.2 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.1 IN |
| Nominal Thickness | 27.95 MM |
| Outside Diameter | 11.64 IN |
| Outside Diameter | 295.65 MM |
| Overall Height | 2.245 IN |
| Overall Height | 57 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00829352364352 |
Part Interchanges
- General Motors 90392559
- Opel 569044
- Bosch 25010597
- Brembo 09.5749.10
- Brembo 25394
- Delphi RB297
- Mighty Distributing System 55041
- Universal 101928
- Wagner Brake BD125534
- Wagner Brake SB56652
- Bendix 145157
- Autospecialty EBR479
- Autospecialty EBR479E
- Brake Headquarters BR55529
- California Drum & Rotor 125534
- Eurorotor GM205
- Guardian 52-125534
- Quality Brand 55041
- Quality Brand Q4016
- VIPAR - Vehicle Indusrty Parts & Manufacturing X51211
- Quinton Hazell BDC4439
- BrakeBest 25010597
- BrakeBest 56652
- BrakeBest 56652R
- BrakeBest 56652RGS
- BrakeBest 81-125534
- BrakeBest BD125534
- Centric Parts 120.36005
- Centric Parts 121.36005
- Centric Parts 125.36005
- Centric Parts 126.36005CSL
- Centric Parts 126.36005CSR
- Centric Parts 126.36005SL
- Centric Parts 126.36005SR
- Centric Parts 127.36005L
- Centric Parts 127.36005R
- AutoZone 55041
- Monroe Brakes BD125534
- Advance Auto Parts 145157
- Advance Auto Parts YH145157
- American Remanufactured 789-78004
- American Remanufactured 89-78004
- Autoxtra 125534
- Autoxtra AX55041
- Casting Numbers 210795-C
- Casting Numbers 325444
- Dura Corp BR55041
- Continental-ContiTech CW28719
- Standard Rotors and Drums 55041
- GREN 685502
- Qualis 55041
- TruStar 493160
- Winhere 442564
- Winhere YH2564
- Newtek Automotive USA 55041
- Promax 14-55041
- Parts Master P125534
- UAP 55041
- NAPA BRAKES SDK6246
- DuraGo BR55041
RAYBESTOS 56652R Cross Reference
We have 57 alternatives for the 56652R by RAYBESTOS:
- AUTOSPECIALTY EBR479
- AUTOSPECIALTY EBR479E
- BENDIX 145157
- BOSCH 25010597
- DELPHI RB297
- GM 90392559
- THE UNIVERSAL GROUP 101928
- ADVANCE AUTO PARTS 145157
- ADVANCE AUTO PARTS YH145157
- AMERICAN REMANUFACTURED 789-78004
- AMERICAN REMANUFACTURED 89-78004
- AUTOXTRA 125534
- AUTOXTRA AX55041
- AUTOZONE 55041
- BRAKE HEADQUARTERS BR55529
- BRAKEBEST 25010597
- BRAKEBEST 56652
- BRAKEBEST 56652R
- BRAKEBEST 56652RGS
- BRAKEBEST 81-125534
- BRAKEBEST BD125534
- BREMBO 09.5749.10
- BREMBO 25394
- CALIFORNIA DRUM & ROTOR 125534
- CENTRIC 120.36005
- CENTRIC 121.36005
- CENTRIC 125.36005
- CENTRIC 126.36005CSL
- CENTRIC 126.36005CSR
- CENTRIC 126.36005SL
- CENTRIC 126.36005SR
- CENTRIC 127.36005L
- CENTRIC 127.36005R
- CONTINENTAL-CONTITECH CW28719
- DURA CORP BR55041
- EUROROTOR GM205
- GREN 685502
- GUARDIAN 52-125534
- MIGHTY DISTRIBUTING SYSTEM 55041
- MONROE BRAKES BD125534
- NAPA BRAKES SDK6246
- NEWTEK AUTOMOTIVE 55041
- OPEL 569044
- PARTS MASTER P125534
- PROMAX 14-55041
- QUALIS 55041
- QUALITY BRAND 55041
- QUALITY BRAND Q4016
- QUINTON HAZELL BDC4439
- STANDARD ROTORS AND DRUMS 55041
- TRUSTAR 493160
- UAP 55041
- VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING X51211
- WAGNER BRAKE BD125534
- WAGNER BRAKE SB56652
- WINHERE 442564
- WINHERE YH2564
Fits Vehicles
- Cadillac Catera (1997-2001)
