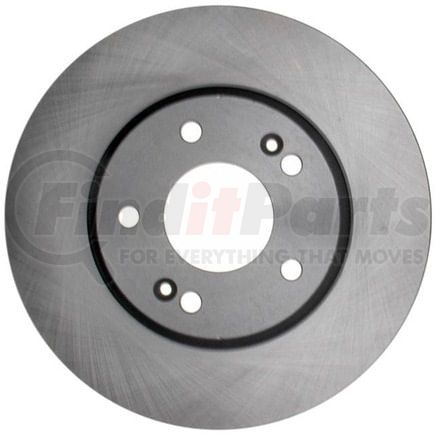

RAYBESTOS 980419R R-Line Disc Brake Rotor - 11.02" Outside Diameter

★★★★★ (0)

MSRP: $88.65

$51.99

Save $36.66

Limited availability at this price!

In Stock

Get as soon as Friday, Nov 20
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

RAYBESTOS 980419R Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos R-Line Brake Rotor

Application Summary

2012-2009 Hyundai Elantra Front, 2010-2005 Hyundai Sonata Front, 2013-2012 Kia Soul Front, 2012-2010 Hyundai Tucson Front, 2010-2006 Kia Optima Front, 2011 Kia Sportage Front, 2012-2010 Kia Rondo Front, 2010-2006 Kia Magentis Front

Features & Benefits

  • OE Fit, Form, and Function
  • Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
  • SAE Standard
  • R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
  • Low Initial Lateral Runout and Thickness Variation
  • R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
  • Mill Balanced Edges
  • R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.

RAYBESTOS 980419R Specifications

Product Attributes

Conventional Or Drum-In-Hat Type RotorConventional
Directional or Non-Directional Brake SurfaceNon-Directional
Discard Thickness0.961 IN
Discard Thickness24.4 MM
Harmonize Code8708.30.5030
MaterialCast Iron
Mounting Bolt Hole Circle Diameter4.5 IN
Mounting Bolt Hole Circle Diameter114.3 MM
Mounting Bolt Hole Diameter0.495 IN
Mounting Bolt Hole Diameter12.55 MM
Mounting Bolt Hole Quantity5
Nominal Thickness1.027 IN
Nominal Thickness26.1 MM
Outside Diameter11.027 IN
Outside Diameter280.1 MM
Overall Height1.87 IN
Overall Height47.5 MM
Salability RestrictionsNo
Solid Or Vented Type RotorVented
Stud/Lug Hole Quantity5
UNSPSC Code25171715

Additional Information

Country of Origin (Primary)CN
Canadian Harmonizing Tariff Code8708309990
Harmonized Tariff Code (HTS)8708305030
UPC00829352597941

RAYBESTOS 980419R Cross References

BrandPart Number
BR11441A, 829352597941
AUTOPARTSOURCE482190, 582190
AUTOZONE31423, 31423DG, 70102
BENDIXPRT5831
BOSCH28010832
BRAKEBEST28010832, 980419, 980419FZN, 980419R, 980419RGS
BREMBO09.B551.10
CENTRIC121.51015
Casting Numbers326295
DURA CORPBR31423
Hyundai517122L000, 517123K000
KIA517122G000, 517123K010
MAGMA PRODUCTSPMR285067
NEWTEK AUTOMOTIVE31423
Newtek Automotive USA31423
PROMAX14-31423, 20-31423
QUALIS31423, 31427
TRWDF4283
TopNotchTN980419GEO
UAP2031427
Ultra BrakeHY-391
WAGNERBD126141, BD126141E
WAGNER BRAKEBD126553
WINHERE6620517
WORLDPAC1427-731797

RAYBESTOS 980419R Fits Vehicles

  • Hyundai Elantra (2009-2012)
  • Hyundai Sonata (2005-2010)
  • Hyundai Tucson (2010-2012)
  • Kia Magentis (2006-2010)
  • Kia Optima (2006-2010)
  • Kia Rondo (2010-2012)
  • Kia Soul (2012-2013)
  • Kia Sportage (2011)
