(888) 312-8812 Login SignupRAYBESTOS 6001R Raybestos R-Line Brake Rotor
$34.98
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

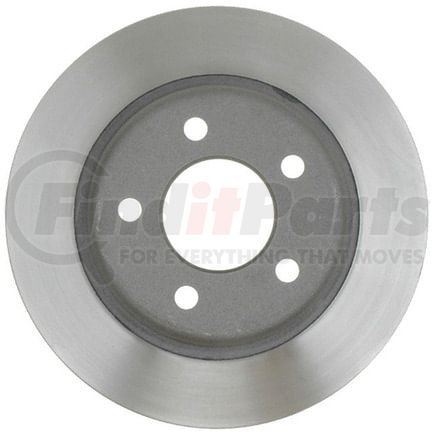

RAYBESTOS 6001R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
1986-1984 Ford Mustang Rear, 1990-1984 Lincoln Mark VII Rear, 1987-1982 Lincoln Continental Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 6001R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.785 IN |
| Center Hole Diameter | 70.75 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.895 IN |
| Discard Thickness | 22.75 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.567 IN |
| Mounting Bolt Hole Diameter | 14.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24 MM |
| Outside Diameter | 11.315 IN |
| Outside Diameter | 287.4 MM |
| Overall Height | 2.365 IN |
| Overall Height | 60.05 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352398449 |
RAYBESTOS 6001R Cross References
| Brand | Part Number |
|---|---|
| 907993MM, 829352398449 | |
| ACDELCO | 177-188 |
| ADVANCE AUTO PARTS | 141752, YH141752 |
| AMERICAN REMANUFACTURED | 789-34020, 789-34021, 89-34020, 89-34021 |
| AUTOPART INTERNATIONAL | 25455 |
| AUTOSPECIALTY | AR8120, AR8120E, AR8121, AR8121E |
| AUTOZONE | 54055 |
| BENDIX | 141752 |
| BRAKEBEST | 6001, 6001R, 6001RGS, BD60628 |
| BREMBO | 09.8037.85, 27101 |
| BrakeBest | 9023RGS |
| CALIFORNIA DRUM & ROTOR | 60628 |
| CENTRIC | 120.61021, 121.61021, 126.61021SL, 126.61021SR, 227.61021L, 227.61021R |
| Casting Numbers | 210508-C, 325219, 54531, 636001, 636003 |
| Centric Parts | 120.61021, 121.61021, 126.61021SL, 126.61021SR, 227.61021L, 227.61021R |
| DELPHI | RB424 |
| DURA CORP | BR54055, BR5453 |
| DuraGo | BR54055, BR5452, BR5453 |
| EIS BRAKES | D2922, D6003 |
| EUROROTOR | 5453 |
| FORD | E25Y2C026A, E8LY2C026A |
| GREN | 650302 |
| GUARDIAN | 52-60628, 52-60629 |
| HOLLANDER | 1172R |
| MAGMA PRODUCTS | PMR203016 |
| MIGHTY DISTRIBUTING SYSTEM | 54055 |
| MONROE BRAKES | BD60629 |
| MOTORCRAFT | BRR74 |
| NEWTEK AUTOMOTIVE | 54055 |
| Newtek Automotive USA | 54055 |
| PROMAX | 14-54055 |
| QUALIS | 54055 |
| QUALITY BRAND | 54055, 5453 |
| STANDARD ROTORS AND DRUMS | 54055, 5453 |
| THE UNIVERSAL GROUP | 102000, 102530 |
| UAP | 54055 |
| Universal | 102000, 102530 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51176 |
| WAGNER | BD60628, PD829, BD60629 |
| WAGNER BRAKE | BD60628, BD60628BD60629, BD60629 |
| WINHERE | 442472, YH2472 |
RAYBESTOS 6001R Fits Vehicles
- Lincoln Mark VII (1984-1990)
- Lincoln Continental (1982-1987)
- Ford Mustang (1984-1986)
