(888) 312-8812 Login SignupRAYBESTOS 980141R Raybestos R-Line Brake Rotor
MSRP: $72.57
$5449
Save $18.08
Limited availability at this price!
In Stock
Get it by Tuesday, Aug 25
RAYBESTOS 980141R Part Description
Manufacturer
Product Description

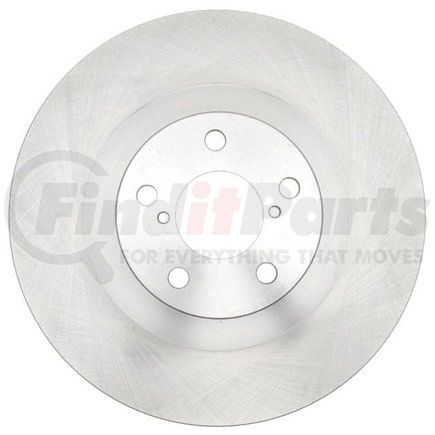

Raybestos R-Line Brake Rotor
Application Summary
2008-2003 Subaru Forester Front, 2005-2001 Subaru Outback Front, 2007-2002 Subaru Impreza Front, 2005-2000 Subaru Legacy Front, 2006-2003 Subaru Baja Front, 2006-2005 Saab 9-2X Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980141R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.29 IN |
| Center Hole Diameter | 58.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.866 IN |
| Discard Thickness | 22 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 3.93 IN |
| Mounting Bolt Hole Circle Diameter | 99.8 MM |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24 MM |
| Outside Diameter | 11.545 IN |
| Outside Diameter | 293.25 MM |
| Overall Height | 2.23 IN |
| Overall Height | 56.65 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352373057 |
RAYBESTOS 980141R Cross References
| Brand | Part Number |
|---|---|
| 901256MM, 829352373057 | |
| ADVANCE AUTO PARTS | 145406, YH145406, YH145406C, YH145406P |
| AUTOPARTSOURCE | 577250 |
| AUTOSPECIALTY | JBR957 |
| AUTOXTRA | 126174, AX34203 |
| AUTOZONE | 34203, 34203DG |
| BECK/ARNLEY | 083-2961 |
| BENDIX | 145406 |
| BRAKEBEST | 48011210, 81-126174, 980141, 980141FZN, 980141PER, 980141R, 980141RGS, BD126174 |
| BREMBO | 09.9077.10, 25646 |
| CENTRIC | 120.47018, 120.47018CRY, 121.47018, 125.47018, 125.47018CRY, 126.47018CSL, 126.47018CSR, 126.47018SL, 126.47018SR, 127.47018CL, 127.47018CR, 127.47018L, 127.47018R, 128.47018CL, 128.47018CR, 128.47018L, 128.47018R, 227.47018L, 227.47018R, 320.47018, 321.47018 |
| CONTINENTAL-CONTITECH | CW21700 |
| Casting Numbers | 0572, 211464-C, 325569 |
| Centric Parts | 120.47018, 120.47018CRY, 121.47018, 125.47018, 125.47018CRY, 126.47018CSL, 126.47018CSR, 126.47018SL, 126.47018SR, 127.47018CL, 127.47018CR, 127.47018L, 127.47018R, 128.47018CL, 128.47018CR, 128.47018L, 128.47018R, 227.47018L, 227.47018R, 320.47018, 321.47018 |
| DURA CORP | BR34203, BR3420302 |
| DuraGo | BR34203, BR3420302 |
| GREN | 62802 |
| GUARDIAN | 52-126174 |
| MAGMA PRODUCTS | PMR525028 |
| MIGHTY DISTRIBUTING SYSTEM | 34203 |
| MONROE BRAKES | BD126174 |
| NAPA BRAKES | SDK6332, TSR650 |
| NEWTEK AUTOMOTIVE | 34203 |
| Newtek Automotive USA | 34203 |
| Omnicraft | QBRR129 |
| POWERSTOP | JBR957EVC |
| PROMAX | 14-34203 |
| QUALIS | 34203 |
| QUALITEE INTERNATIONAL | 64-77-250 |
| QUALITY BRAND | Q541 |
| QUINTON HAZELL | BDC5165 |
| SAAB | 32006171 |
| STANDARD ROTORS AND DRUMS | 34203 |
| SUBARU | 26300AE061, 26300AE02A, 26300AE02B, 26300AE02C, 26300AE060, 26310AC040, 26310AC041 |
| TRUSTAR | 477250, R77250 |
| TRW | DF4104S |
| TopNotch | TN980141GEO |
| UAP | 2034203, 34203 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51518 |
| WABCO | PS126174 |
| WABCO - Archived | PS126174 |
| WAGNER | BD126174, BD126174E |
| WAGNER BRAKE | BD126174, BD126174E |
| WINHERE | 662828 |
| WORLDPAC | 1407-78968, 1427-499369 |
RAYBESTOS 980141R Fits Vehicles
- Saab 9-2X (2005-2006)
- Subaru Outback (2001-2005)
- Subaru Legacy (2000-2005)
- Subaru Impreza (2002-2008)
- Subaru Forester (2003-2008)
- Subaru Baja (2003-2006)
