(888) 312-8812 Login SignupRAYBESTOS 96891R Raybestos R-Line Brake Rotor
$35.52
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96891R Part Description
Manufacturer
Product Description

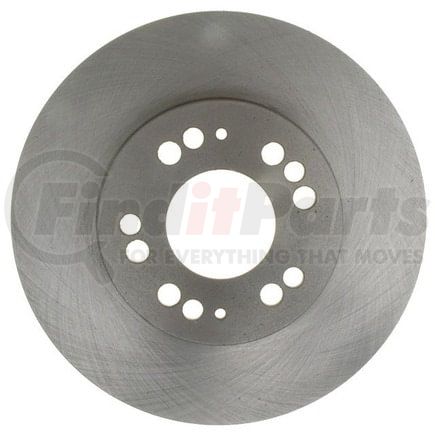

Raybestos R-Line Brake Rotor
Application Summary
1994-1991 Mitsubishi 3000GT Front, 1993-1991 Dodge Stealth Front, 1994-1992 Mitsubishi Diamante Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96891R Specifications
Product Attributes
| Center Hole Diameter | 2.717 IN |
| Center Hole Diameter | 69 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.882 IN |
| Discard Thickness | 22.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 114.3 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24 MM |
| Outside Diameter | 10.866 IN |
| Outside Diameter | 276 MM |
| Overall Height | 1.78 IN |
| Overall Height | 45.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352466919 |
RAYBESTOS 96891R Cross References
| Brand | Part Number |
|---|---|
| ASH12242, 829352466919 | |
| ADVANCE AUTO PARTS | YH141574 |
| AUTOXTRA | 125348 |
| AUTOZONE | 31002, 34192 |
| BRAKEBEST | 96891, 96891R, 96891RGS |
| CALIFORNIA DRUM & ROTOR | 125348 |
| CENTRIC | 121.46032 |
| Casting Numbers | 325001 |
| EUROROTOR | MI329 |
| GREN | 618002 |
| MAGMA PRODUCTS | PMR143036 |
| MIGHTY DISTRIBUTING SYSTEM | 31002 |
| MITSUBISHI | MB895097, MB928319 |
| NEWTEK AUTOMOTIVE | 31002 |
| Newtek Automotive USA | 31002 |
| POWERSTOP | JBR583EVC |
| QUALITY BRAND | 31002, Q405 |
| STANDARD ROTORS AND DRUMS | 31002 |
| THE UNIVERSAL GROUP | 103021 |
| UAP | 31002 |
| Universal | 103021 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50659 |
| WAGNER | BD61983 |
| WINHERE | YH2183 |
RAYBESTOS 96891R Fits Vehicles
- Mitsubishi Diamante (1992-1994)
- Mitsubishi 3000GT (1991-1994)
- Dodge Stealth (1991-1993)
