(888) 312-8812 Login SignupRAYBESTOS 96500R Raybestos R-Line Brake Rotor
$3449
Limited availability at this price!
1 Day Lead Time
Get as soon as Monday, Oct 19
RAYBESTOS 96500R Part Description
Manufacturer
Product Description

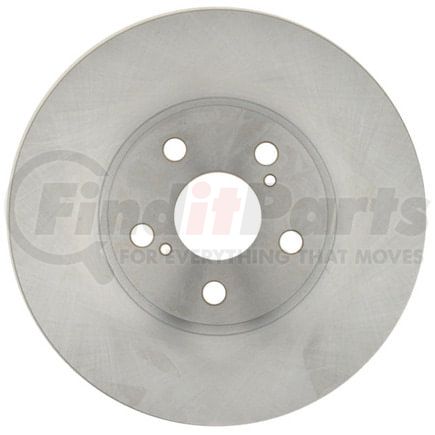

Raybestos R-Line Brake Rotor
Application Summary
1999-1994 Toyota Celica Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96500R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.166 IN |
| Center Hole Diameter | 55 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 3.937 IN |
| Mounting Bolt Hole Diameter | 100 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.105 IN |
| Nominal Thickness | 28.05 MM |
| Outside Diameter | 10.82 IN |
| Outside Diameter | 274.85 MM |
| Overall Height | 1.94 IN |
| Overall Height | 49.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352371510 |
RAYBESTOS 96500R Cross References
| Brand | Part Number |
|---|---|
| 90046098, 829352371510 | |
| ADVANCE AUTO PARTS | 145004, YH145004, YH145004C |
| AMERICAN REMANUFACTURED | 789-22091, 89-22091 |
| ATE BRAKE PRODUCTS | 428183 |
| AUTOSPECIALTY | JBR748, JBR748E |
| AUTOZONE | 31189, 31189DG |
| BECK/ARNLEY | 083-2596, 083-2771 |
| BENDIX | 145004 |
| BOSCH | 50011267 |
| BRAKE HEADQUARTERS | BR06265 |
| BRAKEBEST | 50011267, 96500, 96500R, 96500RGS, BD125425 |
| BREMBO | 09.6708.10, 25425 |
| CALIFORNIA DRUM & ROTOR | 125425 |
| CENTRIC | 120.44099, 121.44099, 126.44099SL, 126.44099SR, 127.44099L, 127.44099R, 128.44099L, 128.44099R |
| Casting Numbers | 211050-C, 325859 |
| Centric Parts | 120.44099, 121.44099, 126.44099SL, 126.44099SR, 127.44099L, 127.44099R, 128.44099L, 128.44099R |
| DELPHI | RB243 |
| DURA CORP | BR31189 |
| DuraGo | BR31189 |
| EUROROTOR | TO6101 |
| GREN | 19602 |
| MAGMA PRODUCTS | PMR563060 |
| MIDAS | BR2039 |
| MIGHTY DISTRIBUTING SYSTEM | 31189 |
| NEWTEK AUTOMOTIVE | 31189 |
| Newtek Automotive USA | 31189 |
| PEP BOYS | 31189G |
| PROMAX | 14-31189 |
| QUALIS | 31189 |
| QUALITY BRAND | 31189, Q017 |
| QUINTON HAZELL | BDC5089 |
| STANDARD ROTORS AND DRUMS | 31189 |
| THE UNIVERSAL GROUP | 107489 |
| TOYOTA | 4351220600, 4351220630 |
| UAP | 31189 |
| Universal | 107489 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51129 |
| WAGNER | BD125425 |
| WAGNER BRAKE | BD125425, SB96500 |
| WINHERE | 442292, YH2292 |
RAYBESTOS 96500R Fits Vehicles
- Toyota Celica (1994-1999)
