(888) 312-8812 Login SignupRAYBESTOS 66748R Raybestos R-Line Brake Rotor
$4599
Limited availability at this price!
In Stock
Get it by Monday, Jul 27
RAYBESTOS 66748R Part Description
Manufacturer
Product Description

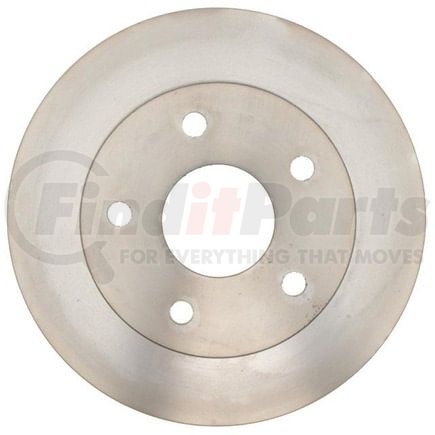

Raybestos R-Line Brake Rotor
Application Summary
1997-1990 Ford Aerostar Front Left
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 66748R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.54 IN |
| Center Hole Diameter | 64.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.811 IN |
| Discard Thickness | 20.6 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.546 IN |
| Mounting Bolt Hole Diameter | 13.85 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.875 IN |
| Nominal Thickness | 22.2 MM |
| Outside Diameter | 10.29 IN |
| Outside Diameter | 261.35 MM |
| Overall Height | 2.564 IN |
| Overall Height | 65.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352365960 |
RAYBESTOS 66748R Cross References
| Brand | Part Number |
|---|---|
| 88969107, 829352365960 | |
| ADVANCE AUTO PARTS | 141821, YH141821 |
| AMERICAN REMANUFACTURED | 789-42030, 89-42030 |
| AUTOSPECIALTY | AR8529, AR8529E |
| AUTOZONE | 5491, 5491B |
| BENDIX | 141821 |
| BRAKEBEST | 66748, 66748R, 66748RGS |
| BREMBO | 09.8480.85, 27185 |
| CENTRIC | 120.65029, 121.65029 |
| Casting Numbers | 211189-C, 325263, 54911 |
| Centric Parts | 120.65029, 121.65029 |
| DELPHI | RB442 |
| DURA CORP | BR5491 |
| DuraGo | BR5489, BR5491 |
| EUROROTOR | 5490L |
| FORD | F29Z1125B |
| GREN | 637402 |
| MIGHTY DISTRIBUTING SYSTEM | 5491 |
| NEWTEK AUTOMOTIVE | 5491 |
| Newtek Automotive USA | 5491 |
| PROMAX | 14-5491 |
| QUALIS | 5491 |
| QUALITY BRAND | 5491 |
| Qualis | 5489 |
| STANDARD ROTORS AND DRUMS | 5491 |
| THE UNIVERSAL GROUP | 102910 |
| Universal | 102910 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50653 |
| WAGNER | BD125109 |
| WINHERE | 442313, YH2313 |
RAYBESTOS 66748R Fits Vehicles
- Ford Aerostar (1990-1997)
