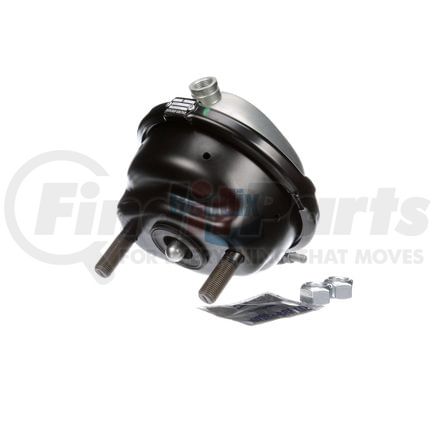

BENDIX K028225 Brake Chamber (Disc)

Name: Bendix K028225 Brake Chamber (Disc)
SKU: k028225
Price: 184.49 USD
Availability: InStock

★★★★★ (0)

Bendix K028225 Suspension Shock Absorber Kit Brake Chamber (Disc)

Tap to view
1 more

Tap to view 5 more

MSRP: $292.97

$184.49

Save $108.48

Limited availability at this price!

In Stock

Get as soon as Monday, Oct 26

30-day Return Policy On eligible items Details

Free Ground shipping on orders over $499 details

BENDIX K028225 Part Description

Manufacturer

BENDIX

Product Description

Brake Chamber (Disc)

Features & Benefits

Caliper-mounted design suits air disc brake axles on trucks and trailers
Air-tight chamber body delivers full force to the caliper
Turns air pressure into the force that clamps the caliper
Caliper mounting and stroke decide the correct chamber

Bendix Air Disc Brake Chamber

The Bendix Air Disc Brake Chamber is a service chamber for air disc brakes, turning air pressure into the force that applies the caliper. Disc brake chambers bolt directly to the caliper, so the Bendix K028225 has to match the caliper's mounting and stroke rather than an S-cam bracket. A leaking diaphragm reduces that force and can be heard as a hiss when the brakes are applied. A soap test at the port and clamp ring after installation confirms the chamber is sealed.

BENDIX K028225 Specifications

Product Attributes

Cautionary Note(s)	All vent holes must be open
Chamber Type / Size	T20
Clamp Angle	Universal
Market Indicator	Aftermarket New
Maximum Operating Temperature	176 AdegF (80 AdegC)
Minimum Operating Temperature	-40 AdegF (-40 AdegC)
Mounting Stud Length	1.70 IN (43.2 MM)
Port Angle	Universal
Push Rod Length [MM]	15 mm
Push Rod Thread / Style	Spherical End
Service Chamber Joint Type	Single Clamp Band
Service Chamber Vent Holes	All Open
Service Port (11) - Center	Not applicable to this part
Service Port (11) - Side	3/8-18 NPTF
Stroke	2.50 IN (63.5 MM)
Stud Spacing	4.75 IN (120.7 MM)
Stud Thread Size	M16 x 1.5-6g
