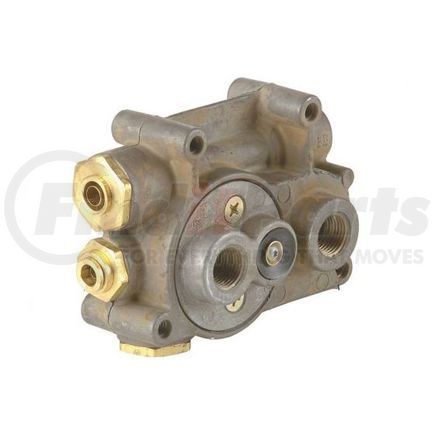

(888) 312-8812 Login SignupBENDIX 802938 TP-5 Tractor Protection Valve - 1/8" NPT (On Back Side), 1/4" NPT Control Port
$57099
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 17
BENDIX 802938 Part Description
Manufacturer
Product Description
Tractor Protection Valve
Features & Benefits
- Prevents air loss in the event of trailer brake failure
- Maintains system pressure for reliable brake performance
- Created for compatibility with Bendix air brake systems
- Helps ensure safe and controlled stopping power
Bendix Tractor Protection Valve
A crucial component in air brake systems, the Bendix Tractor Protection Valve safeguards trailers from losing air pressure in the event of a failure. Through the process of preventing air loss and maintaining proper brake function, it helps ensure safety on the road. Created for long-lasting solidity, this valve is a key part of maintaining responsive braking, especially in professional-grade applications. Whenever you’re hunting for a trusted protection valve, the Bendix 802938 guarantees top-notch performance that will stand the test of time.
| Product Type | Tractor Protection Valve |
| Valve Type | TP-5 |
| Application | Tractor |
BENDIX 802938 Specifications
Product Attributes
| Gross Weight | 1.188 KG |
| Market Indicator | Aftermarket New |
| Net Weight | 1.188 KG |
| Auxiliary Supply Port | Not applicable to this part |
| Exhaust Port | Dust Shield |
| Maximum Operating Temperature | 221 AdegF (105 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Mounting | A~ .34 IN (4x) |
| Mounting Type | Firewall |
| Service Line Opening Pressure | 50 PSI (MAX) |
| Service Line Shut-Off Pressure | 10 PSI (MIN) |
| Stop Light Switch Port | 1/4-18 NPT (Plugged) |
| Stop Light Switch Port (Firewall) | 1/8-27 NPT |
| Tractor Control Port (Primary) | 3/8-18 NPT |
| Tractor Control Port (Secondary) | 3/8-18 NPT |
| Tractor Protection Port | 3/8-18 NPT (Plugged) |
| Tractor Protection Port (Firewall) | 1/4-18 NPT |
| Tractor Service Port | Not applicable to this part |
| Trailer Control Port | 1/4-18 NPT |
| Trailer Service Port | 1/2-14 NPT |
| Trailer Service Quick Release | Yes |
| Trailer Supply Port | 1/2-14 NPT |
| Trailer Supply Quick Release | Not applicable to this part |
| Vent | Yes |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8481200070 |
| UPC | 04068078299777 |
| VMRS Code | 013010016 |
BENDIX 802938 Customer Reviews
No reviews yet
Be the first to review this product!
BENDIX 802938 Manufacturer Information
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
