CENTRIC 407.45003 Part Description
Manufacturer
Product Description

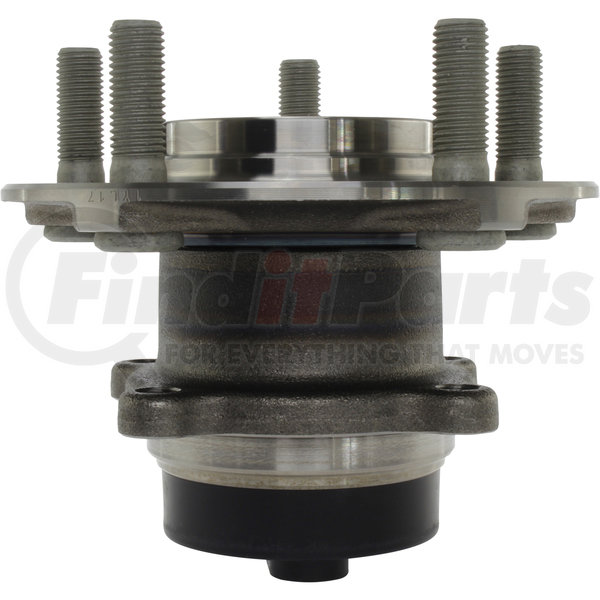

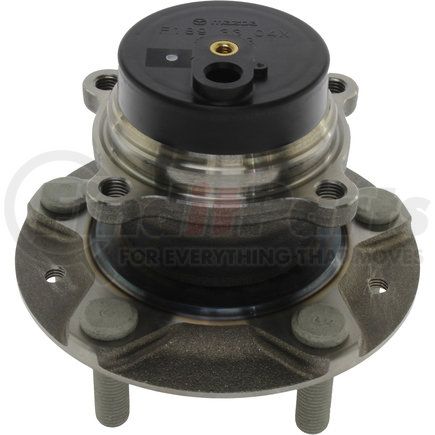

Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
- Double Row Ball or Taper Roller Bearings include integral encoder for ABS and TCS where applicable
- Gen 1
- Gen 2
- Double Row Ball or Taper Roller Bearing Assemblies include one mounting flange - includes integral encoder for ABS, TCS where applicable
- Gen 3
- Double Row Ball or Taper Roller Bearing Assemblies include 2 mounting flanges - includes integral ABS sensor where applicable
CENTRIC 407.45003 Specifications
Product Attributes
| Off-set [cntrc] Mm | 2.136 |
| Mounting Thread Pitch [cntrc] Mm | 1.250 |
| Inner Mount Pilot [cntrc] In | 2.886 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Off-set [cntrc] In | 54.250 |
| Mouting Thread Size [cntrc] Mm | 10.000 |
| Inner Mount Pilot [cntrc] Mm | 74.000 |
| Thread Pitch To Wheel Mounting [cntrc] In | 20.000 |
| Notes [cntrc] | Retaining Holes 2xM7-1.0 ; Use Late Hub w/DSC |
| Mounting Hole Qty [cntrc] | 4 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Product Grade [cntrc] | Premium |
| Wheel Stud Size | 0.500 IN |
| Wheel Pilot Diameter | 67.000 MM |
| Wheel Pilot Diameter | 2.621 IN |
| Brake Pilot Diameter | 72.000 MM |
| Brake Pilot Diameter | 2.817 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.498 IN |
| Flange Diameter | 139.650 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8482105016 |
| UPC | 00805890619932 |
CENTRIC 407.45003 Cross References
CENTRIC 407.45003 Fits Vehicles
- Mazda RX-8 (2009-2011)
- Mazda MX-5 Miata (2006-2015)
