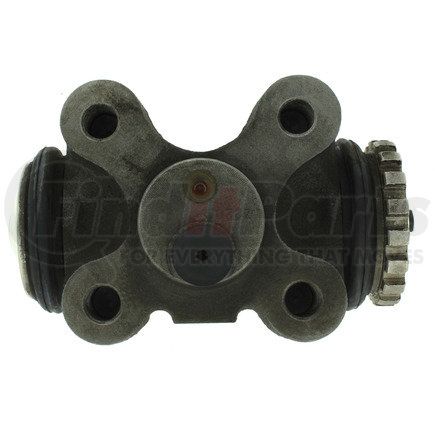

Centric 134.75012 - Centric Premium Wheel Cylinder
$13049
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Wheel Cylinder
Features & Benefits
- OE style replacement. Highest quality. Includes brass inserts and aluminum castings where applicable
Product Attributes
| Port 2 Dia [cntrc] Mm | 12.000 |
| Port 2 Flare Type [cntrc] | Bubble |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Kgs | 0.910 |
| Notes 1 [cntrc] | 1 Piston with Star Wheel Adjuster, other piston has cone shaped face, Top of cylinder with boss and 2 tapped holes |
| Piston 2 Type [cntrc] | Slotted |
| Port 2 Thrd Pitch [cntrc] Mm | 1.500 |
| Publication Bore [cntrc] | 1 5/8" |
| Weight [cntrc] Lbs | 2.000 |
| Piston 1 Type [cntrc] | Slotted |
| Attachment Type | Bolted |
| Inlet Thread Diameter | 10.000 MM |
| Mounting Method | 4 Bolts |
| Mounting Hole Quantity | 4 |
| Bleeder Screw Included | No |
| Piston Quantity | 2 |
| Bore Diameter | 41.275 MM |
| Bore Diameter | 1.625 IN |
| 9190 | 1.000 MM |
| Flare Type | Inverted Flare |
Additional Information
| Harmonized Tariff Code (HTS) | 8412210075 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890018292 |
Part Interchanges
CENTRIC 134.75012 Cross Reference
We have 4 alternatives for the 134.75012 by CENTRIC:
Fits Vehicles
- Hino FF3020 (1993-1995)
- Hino FF3018 (1993-1995)
- Hino FE2618 (1993-1995)
- Hino FF23 (1992)
- Hino FF20 (1992)
- Hino FE20 (1992)
- Hino FF19 (1984-1991)
- Hino FE19 (1985-1992)
- Hino FF17 (1984-1991)
- Hino FE17 (1984-1991)
