Centric 134.49002 - Centric Premium Wheel Cylinder
$1199
MSRP: $16.07
Save: $4.08
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

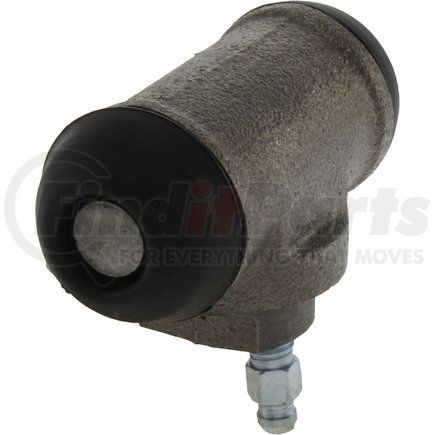

Centric Premium Wheel Cylinder
Features & Benefits
- OE style replacement. Highest quality. Includes brass inserts and aluminum castings where applicable
Product Attributes
| Weight [cntrc] Kgs | 0.450 |
| Position [cntrc] | Left & Right |
| Weight [cntrc] Lbs | 1.000 |
| Piston 1 Type [cntrc] | Flat |
| Publication Bore [cntrc] | 13/16" |
| Piston 2 Type [cntrc] | Flat |
| Port 2 Flare Type [cntrc] | Bubble |
| Product Grade [cntrc] | Premium |
| Attachment Type | Bolted |
| Inlet Thread Diameter | 10.000 MM |
| Mounting Method | 1 bolt |
| Mounting Hole Quantity | 1 |
| Bleeder Screw Included | Yes |
| Piston Quantity | 2 |
| Bleeder Thread Diameter | 8.000 MM |
| Bore Diameter | 20.638 MM |
| Bore Diameter | 0.813 IN |
| 9190 | 1.000 MM |
| Flare Type | Bubble |
| 9564 | 1.250 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8412210075 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890132776 |
Part Interchanges
CENTRIC 134.49002 Cross Reference
We have 2 alternatives for the 134.49002 by CENTRIC:
Fits Vehicles
- Chevrolet Spark (2011-2015)
- Pontiac G3 Wave (2009)
- Pontiac Wave5 (2005, 2007)
- Pontiac G3 (2009-2010)
- Chevrolet Aveo5 (2006-2011)
- Pontiac Wave (2005-2008)
- Chevrolet Aveo (2004-2018)
- Daewoo Lanos (1999-2002)
