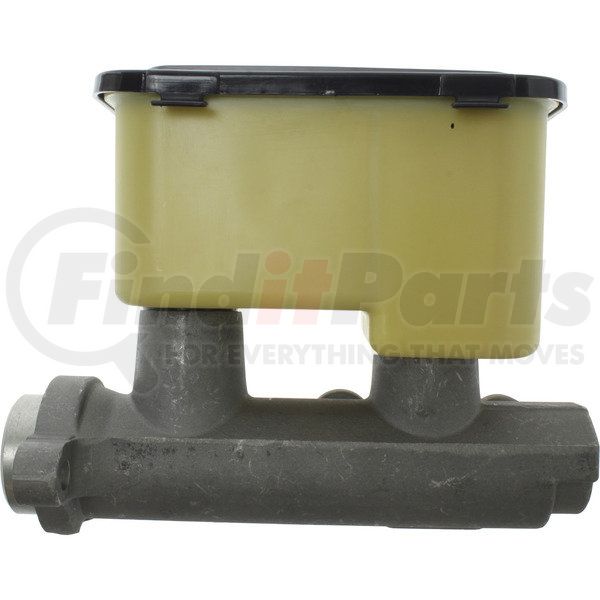

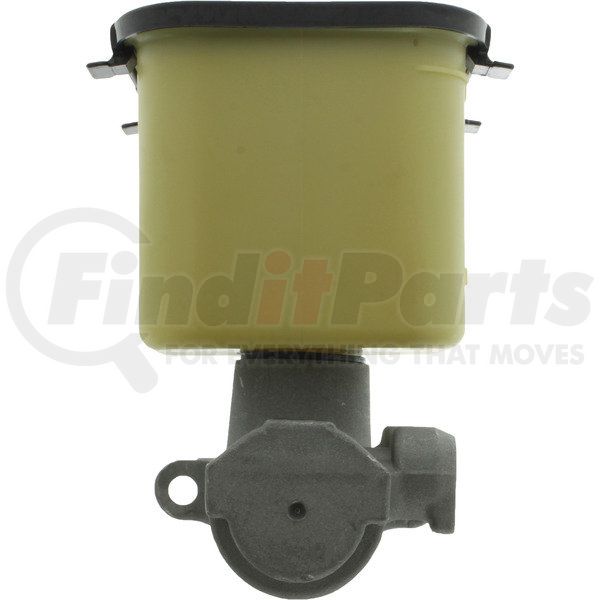

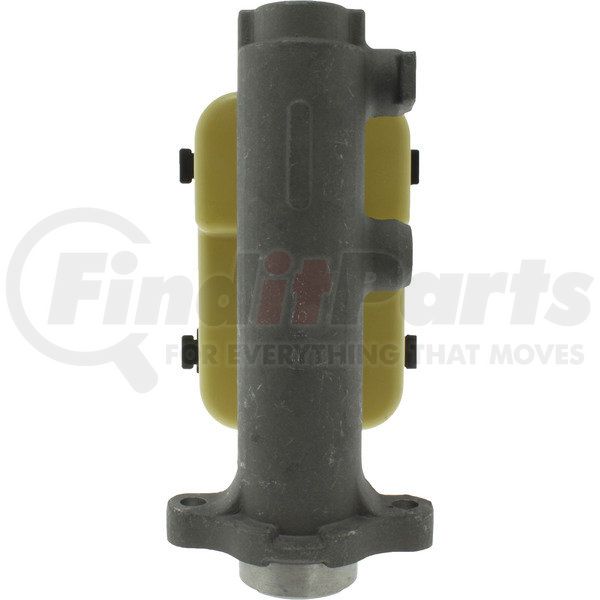

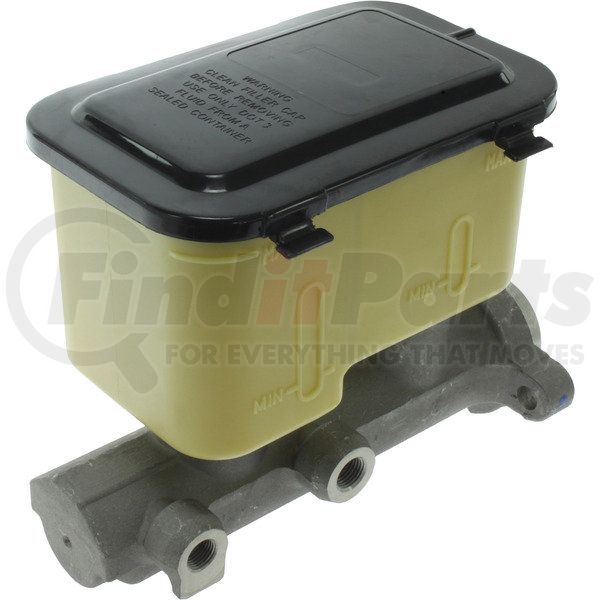

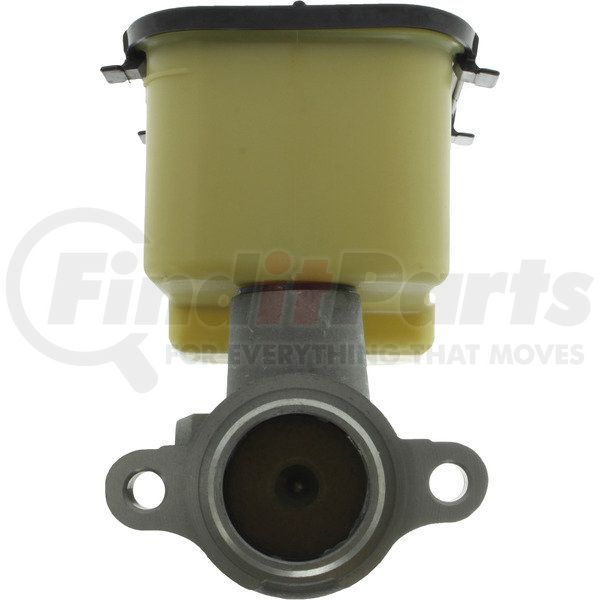

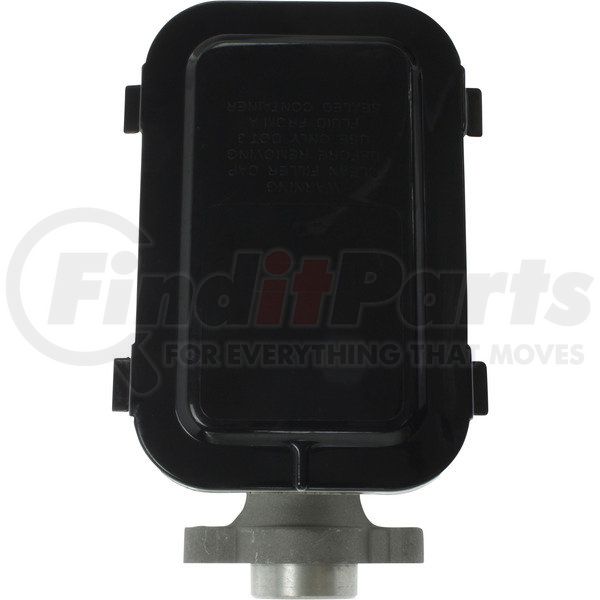

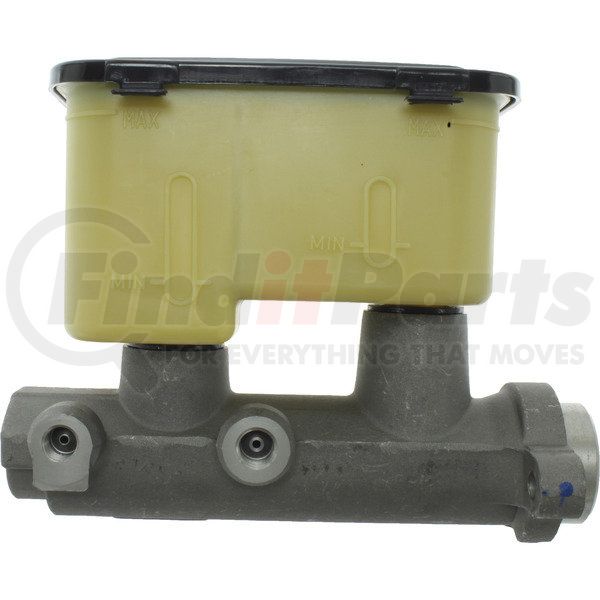

Centric 131.66027 - C-Tek Standard Brake Master Cylinder
$11749
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Master Cylinder
Features & Benefits
- Reservoirs and caps included. Pressure tested for worry free performance. Wide application coverage.
Product Attributes
| Publication Bore [cntrc] | 40mm |
| Boss, Nipple Or Port: Front, Left: #a [cntrc] | 1/2"-20 inv |
| Weight [cntrc] Lbs | 4 |
| Primary Outlet Flare Type [cntrc] | Inverted |
| Product Grade [cntrc] | Standard |
| Push Rod: Length / Depth [cntrc] In | dmpl |
| Boss, Nipple Or Port: Rear: #a [cntrc] | 9/16"-18 inv |
| Weight [cntrc] Kgs | 1.82 |
| Secondary Outlet Flare Type [cntrc] | Inverted |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 1.575 IN |
| Master Cylinder Bore Diameter | 40.000 MM |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Reservoir Type | Single |
| Primary Outlet Thread Diameter | 0.5625 IN |
| Secondary Outlet Thread Diameter | 0.500 IN |
| Bleeder Hoses Included | No |
| Port Quantity | 2 |
| Mounting Bracket Included | No |
| 9275 | 20 IN |
| 9276 | 18 IN |
| Bore Type | Straight |
| Bore Size | 40.000 MM |
| Bore Size | 1.575 IN |
| Secondary Outlet Thread Size | 1/2"-20 |
| Primary Outlet Thread Size | 9/16"-18 |
| Primary Outlet Flare Type | Inverted |
| Secondary Outlet Flare Type | Inverted |
| Primary Bore Diameter | 40.000 MM |
| Primary Bore Diameter | 1.575 IN |
| Reservoir Style | Removable |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8413919050 |
| UPC | 805890176336 |
CENTRIC 131.66027 Cross Reference
We have 2 alternatives for the 131.66027 by CENTRIC:
Fits Vehicles
- GMC C3500HD (1992-2002)
- Chevrolet C3500HD (1992-2002)
- Workhorse W42 (2004-2005)
- Workhorse P30 (2000-2005)
- GMC P3500 (1993-1999)
- Chevrolet P30 (1995-1999)
