(888) 312-8812 Login SignupCENTRIC 131.62048 C-Tek Standard Brake Master Cylinder
Tap to view 6 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 131.62048 Part Description
Manufacturer
Product Description

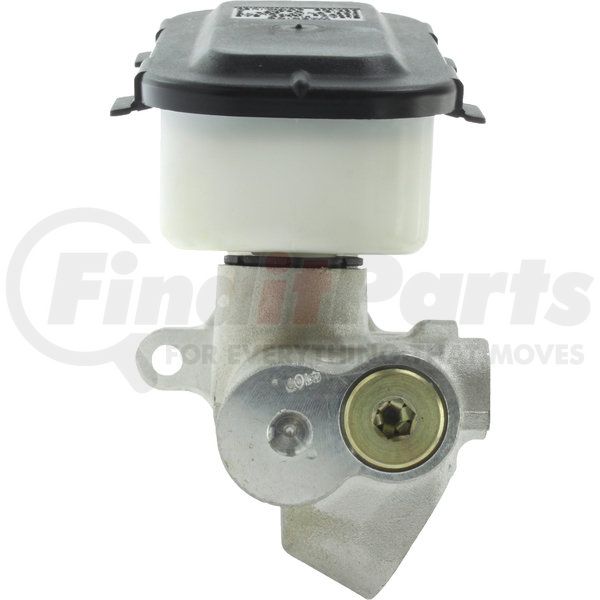

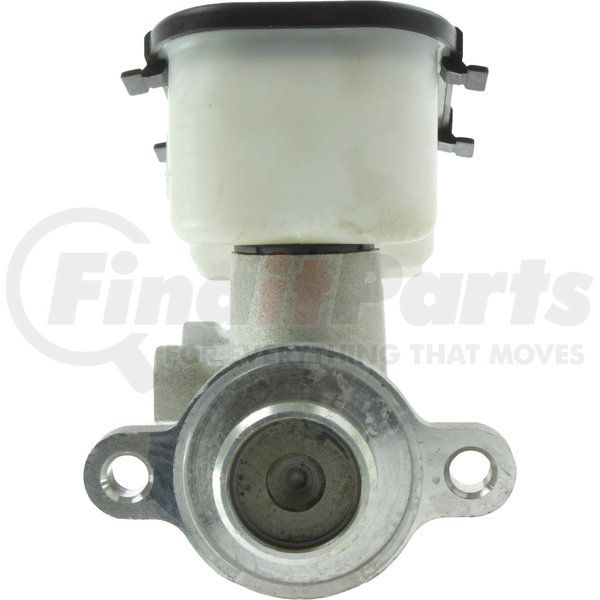

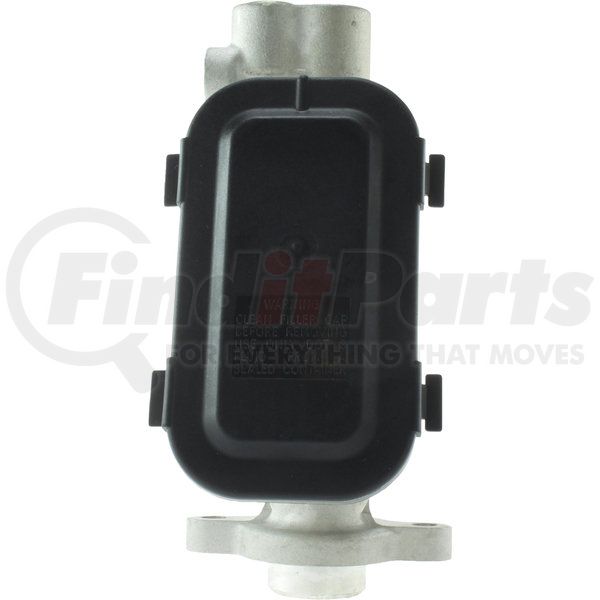

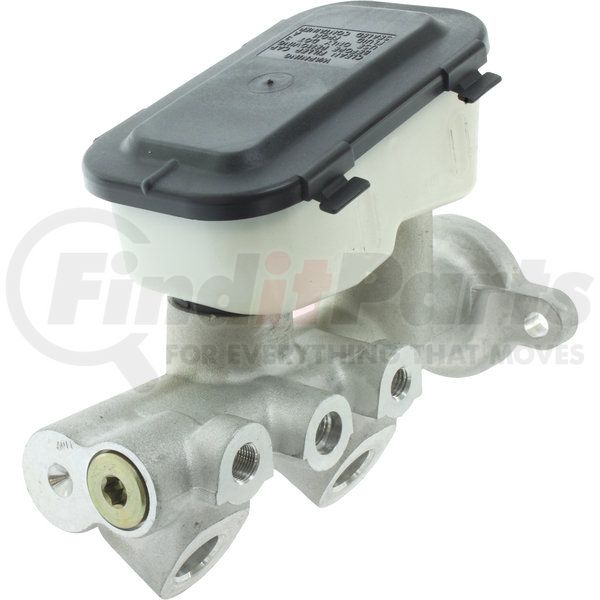

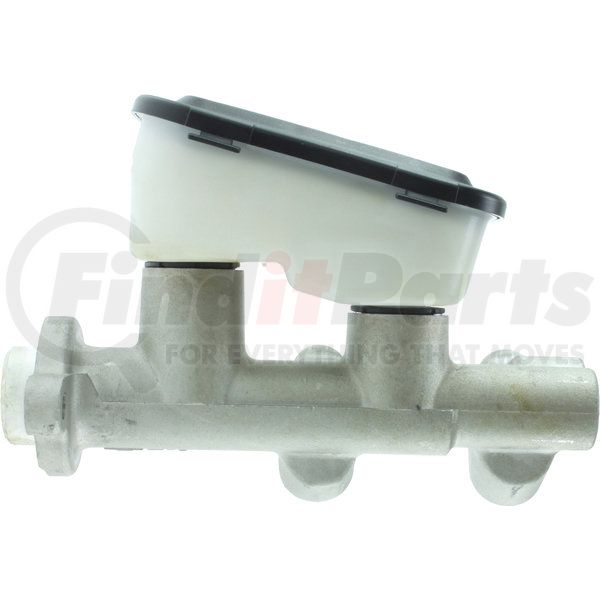

C-Tek Standard Brake Master Cylinder
Features & Benefits
- Reservoirs and caps included. Pressure tested for worry free performance. Wide application coverage.
CENTRIC 131.62048 Specifications
Product Attributes
| Publication Bore [cntrc] | 31.7mm - 22.2mm |
| Boss, Nipple Or Port: Front, Left: #a [cntrc] | M12-1.00 bbl |
| Boss, Nipple Or Port: Rear: #a [cntrc] | M11-1.50 bbl |
| Weight [cntrc] Lbs | 3.9 |
| Master Cylinder Bore Diameter Secondary [cntrc] Mm | 22.200 |
| Primary Outlet Flare Type [cntrc] | Bubble |
| Push Rod: Length / Depth [cntrc] In | dmpl |
| Boss, Nipple Or Port: Front, Left: #b [cntrc] | M16-1.50 |
| Boss, Nipple Or Port: Rear: #b [cntrc] | M16-1.50 |
| Weight [cntrc] Kgs | 1.77 |
| Master Cylinder Bore Diameter Secondary [cntrc] In | 0.874 |
| Product Grade [cntrc] | Standard |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Reservoir Type | Single |
| Primary Outlet Thread Diameter | 11.000 MM |
| Bleeder Hoses Included | No |
| Port Quantity | 4 |
| Mounting Bracket Included | No |
| Primary Outlet Thread Pitch | 1.50 MM |
| Bore Type | Stepped |
| Primary Outlet Thread Size | M11-1.50 |
| Primary Outlet Flare Type | Bubble |
| Primary Bore Diameter | 31.700 MM |
| Primary Bore Diameter | 1.248 IN |
| Secondary Bore Diameter | 22.200 MM |
| Secondary Bore Diameter | 0.874 IN |
| Reservoir Style | Removable |
Additional Information
| Harmonized Tariff Code (HTS) | 8413919050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890012078 |
CENTRIC 131.62048 Cross References
| Brand | Part Number |
|---|---|
| 2539382, MC39382, F107052, F116403 | |
| DORMAN | M39382 |
| N/A | F107052, F116403, 6693130, MC107052, M900401, 18010087, 18010090, 18013417, 65-M39382, CM1537, MC39382, 2539382, PMC11925, 11925, 39382, 230262048, 2302-62048, MC116403, 2036, M82048, M82048E, E98282, E98283, E105894, 174581, 174583, 174622, 18030443, 18M201, M39382 |
| RAYBESTOS | MC39382 |
