(888) 312-8812 Login SignupRAYBESTOS 7927R Raybestos R-Line Brake Rotor
$4599
Limited availability at this price!
In Stock
Get as soon as Friday, Oct 9
RAYBESTOS 7927R Part Description
Manufacturer
Product Description

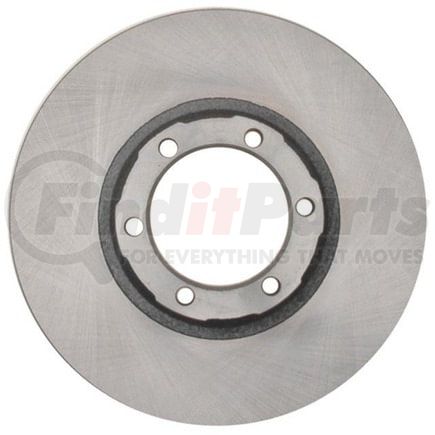

Raybestos R-Line Brake Rotor
Application Summary
1996-1986 Mitsubishi Mighty Max Front, 1993-1986 Dodge Ram 50 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 7927R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.31 IN |
| Center Hole Diameter | 84.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.803 IN |
| Discard Thickness | 20.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.095 IN |
| Mounting Bolt Hole Circle Diameter | 104 MM |
| Mounting Bolt Hole Diameter | 4.095 IN |
| Mounting Bolt Hole Diameter | 104 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.865 IN |
| Nominal Thickness | 21.95 MM |
| Outside Diameter | 10.16 IN |
| Outside Diameter | 258.05 MM |
| Overall Height | 1.32 IN |
| Overall Height | 33.55 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352367339 |
RAYBESTOS 7927R Cross References
| Brand | Part Number |
|---|---|
| 829352367339 | |
| ADVANCE AUTO PARTS | 141390, YH141390 |
| AMERICAN REMANUFACTURED | 789-16019, 89-16019 |
| AUTOPART INTERNATIONAL | 78113 |
| AUTOSPECIALTY | JBR348, JBR348E |
| AUTOXTRA | 61797, AX3282 |
| AUTOZONE | 3282 |
| BECK/ARNLEY | 080-2192, 083-2192 |
| BENDIX | 141390 |
| BRAKE HEADQUARTERS | BR10321 |
| BRAKE PRO | 4618575, 4618579 |
| BRAKEBEST | 7927, 7927R, 7927RGS, 81-61797 |
| BREMBO | 09.5125.10, 25298 |
| CALIFORNIA DRUM & ROTOR | 61797 |
| CENTRIC | 120.46018, 121.46018, 127.46018L, 127.46018R |
| CENTURY | 9341 |
| CHRYSLER | MB407031 |
| Casting Numbers | 210348-C, 325343, 5139 |
| Centric Parts | 120.46018, 121.46018, 127.46018L, 127.46018R |
| DAYTON WALTHER | D7962 |
| DELPHI | RB630 |
| DURA CORP | BR3282 |
| DuraGo | BR3282 |
| EIS BRAKES | D17285 |
| EUROROTOR | MI314 |
| GREN | 611102 |
| GUARDIAN | 52-61797 |
| GUNITE | G16022 |
| INTERBRAKES | DG171V |
| ITM ENGINE COMPONENTS | 1601207 |
| MAGMA PRODUCTS | PMR145117 |
| MCI | 3944 |
| MIDAS | BR1636 |
| MIGHTY DISTRIBUTING SYSTEM | 3282 |
| MITSUBISHI | MB407031 |
| MONROE BRAKES | BD61797 |
| NEWTEK AUTOMOTIVE | 3282 |
| Newtek Automotive USA | 3282 |
| PARTS MASTER | P61797 |
| PEP BOYS | 3282G |
| QUALIS | 3282 |
| QUALITEE INTERNATIONAL | 64-75-200 |
| QUALITY BRAND | 3282 |
| QUINTON HAZELL | BDC4354 |
| ROADMATES | 526660 |
| ROCKHILL | 3282 |
| STANDARD ROTORS AND DRUMS | 3282 |
| THE UNIVERSAL GROUP | 103820 |
| TRUSTAR | 475200, R75200 |
| UAP | 3282 |
| Universal | 103820 |
| VERA | 3404528 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50517 |
| WAGNER | BD61797 |
| WAGNER BRAKE | BD61797, SB7927 |
| WINHERE | YH2188 |
| WORLDPAC | 1407-78113 |
RAYBESTOS 7927R Fits Vehicles
- Dodge Ram 50 (1986-1993)
- Mitsubishi Mighty Max (1986-1996)
