(888) 312-8812 Login SignupRAYBESTOS 96063R Raybestos R-Line Brake Rotor
$4449
Limited availability at this price!
In Stock
Get it by Friday, Aug 14
RAYBESTOS 96063R Part Description
Manufacturer
Product Description

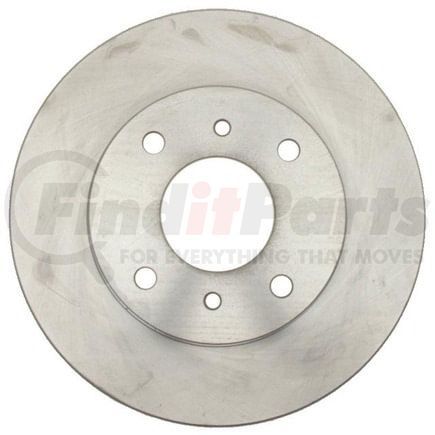

Raybestos R-Line Brake Rotor
Application Summary
1998-1997,1993-1989 Nissan 240SX Front, 1996-1991 INFINITI G20 Front, 1992-1990 Nissan Stanza Front, 1995-1990 Nissan Axxess Front, 2013-2011 Renault Scala Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96063R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.68 IN |
| Center Hole Diameter | 68.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.496 IN |
| Mounting Bolt Hole Diameter | 12.6 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.865 IN |
| Nominal Thickness | 21.95 MM |
| Outside Diameter | 10.1 IN |
| Outside Diameter | 256.55 MM |
| Overall Height | 1.935 IN |
| Overall Height | 49.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352369630 |
RAYBESTOS 96063R Cross References
| Brand | Part Number |
|---|---|
| 829352369630 | |
| ADVANCE AUTO PARTS | 141656, YH141656, YH141656C |
| ALTROM IMPORTS | A03264 |
| AMERICAN REMANUFACTURED | 789-04041, 89-04041 |
| ATE BRAKE PRODUCTS | 422146 |
| AUTOPARTSOURCE | 576580 |
| AUTOSPECIALTY | JBR503, JBR503E |
| AUTOXTRA | 61981, AX3264 |
| AUTOZONE | 3264, 3264B, 3264DG, DL3264 |
| BECK/ARNLEY | 080-2320, 083-2320 |
| BENDIX | 141656 |
| BRAKE HEADQUARTERS | BR04098 |
| BRAKE PRO | 4616063 |
| BRAKEBEST | 81-61981, 96063R, 96063RGS, 96063, BD61981 |
| BREMBO | 09.5449.10, 09.5449.80, 25511 |
| CALIFORNIA DRUM & ROTOR | 61981 |
| CENTRIC | 120.42041, 120.42041CRY, 121.42041, 125.42041, 126.42041CSL, 126.42041CSR, 126.42041SL, 126.42041SR, 127.42041CL, 127.42041CR, 127.42041L, 127.42041R, 128.42041CL, 128.42041CR, 128.42041L, 128.42041R, 227.42041L, 227.42041R, 320.42041, 320.42041F |
| CENTURY | 9450 |
| CONTINENTAL-CONTITECH | CW22723 |
| Casting Numbers | 325095, 5170 |
| Centric Parts | 120.42041, 120.42041CRY, 121.42041, 125.42041, 126.42041CSL, 126.42041CSR, 126.42041SL, 126.42041SR, 127.42041CL, 127.42041CR, 127.42041L, 127.42041R, 128.42041CL, 128.42041CR, 128.42041L, 128.42041R, 227.42041L, 227.42041R, 320.42041, 320.42041F |
| DATSUN/NISSAN | 40206710, 402067100, 4020671E01, 4020671E02, 4020671E05, 4020671E06, 4020671E07 |
| DELPHI | RB183 |
| DURA CORP | BR3264 |
| DuraGo | BR31307, BR3130702, BR3264 |
| EIS BRAKES | D17489 |
| GREN | 38102 |
| GUARDIAN | 52-61981 |
| GUNITE | G16044 |
| INTERBRAKES | NS641V |
| ITM ENGINE COMPONENTS | 1600553 |
| MAGMA PRODUCTS | PMR425085 |
| MCI | 3876 |
| MIDAS | BR1683 |
| MIGHTY DISTRIBUTING SYSTEM | 3264 |
| MONROE BRAKES | BD61981 |
| NAPA BRAKES | TSR9300 |
| NEWTEK AUTOMOTIVE | 3264 |
| Newtek Automotive USA | 3264 |
| Nissan | 40206710, 402067100, 4020671E01, 4020671E02, 4020671E05, 4020671E06, 4020671E07 |
| Omnicraft | QBRR81 |
| PARTS MASTER | P61981 |
| POWERSTOP | JBR503EVC |
| PROMAX | 14-3264 |
| QUALIS | 31198, 3264 |
| QUALITEE INTERNATIONAL | 64-76-580 |
| QUALITY BRAND | 3264 |
| QUINTON HAZELL | BDC3775 |
| ROADMATES | 526671 |
| ROCKHILL | 3264 |
| STANDARD ROTORS AND DRUMS | 3264 |
| THE UNIVERSAL GROUP | 109640 |
| TRUSTAR | 476580, R76580 |
| TRW | DF2591S |
| UAP | 3264 |
| Universal | 109640 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50510 |
| WABCO | PS61981 |
| WABCO - Archived | PS61981 |
| WAGNER | BD61981 |
| WAGNER BRAKE | BD61981, SB96063 |
| WINHERE | 442133, YH2133 |
| WORLDPAC | 1407-78853 |
RAYBESTOS 96063R Fits Vehicles
- Renault Scala (2011-2013)
- Nissan Axxess (1990-1995)
- Nissan Stanza (1990-1992)
- INFINITI G20 (1991-1996)
- Nissan 240SX (1989-1993, 1997-1998)
