(888) 312-8812 Login SignupRAYBESTOS 9893R Raybestos R-Line Brake Rotor
$5949
Limited availability at this price!
In Stock
Get it by Thursday, Aug 27
RAYBESTOS 9893R Part Description
Manufacturer
Product Description

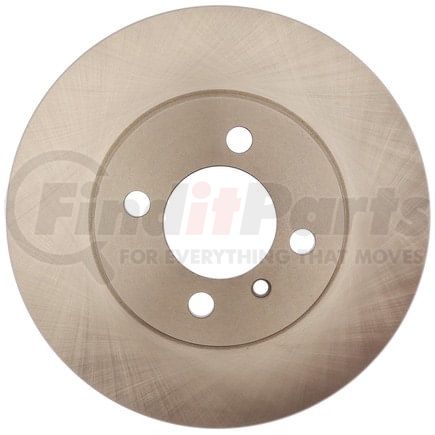

Raybestos R-Line Brake Rotor
Application Summary
1993-1987 BMW 325i Front, 1987-1984 BMW 325e Front, 1988-1986 BMW 325 Front, 1991-1987 BMW 325is Front, 1992-1991 BMW 318i Front, 1991 BMW 318is Front, 1991-1988 BMW 325iX Front, 1987-1986 BMW 325es Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 9893R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.603 IN |
| Center Hole Diameter | 66.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.803 IN |
| Discard Thickness | 20.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 3.937 IN |
| Mounting Bolt Hole Diameter | 100 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.87 IN |
| Nominal Thickness | 22.1 MM |
| Outside Diameter | 10.23 IN |
| Outside Diameter | 259.85 MM |
| Overall Height | 1.39 IN |
| Overall Height | 35.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352373286 |
RAYBESTOS 9893R Cross References
| Brand | Part Number |
|---|---|
| 829352373286 | |
| ADVANCE AUTO PARTS | 141346, YH141346, YH141346C |
| AMERICAN REMANUFACTURED | 789-62018, 89-62018 |
| AUTOPART INTERNATIONAL | 78787 |
| AUTOSPECIALTY | EBR219, EBR219E |
| AUTOXTRA | 61868, 809893, AX3469 |
| AUTOZONE | 3455, 3455B, 3455DG |
| AXXIS | 085-7070 |
| BECK/ARNLEY | 083-2120 |
| BENDIX | 141346 |
| BMW | 34111154749, 34111160915 |
| BOSCH | 15010060 |
| BRAKE HEADQUARTERS | BR05130 |
| BRAKE PRO | 4619893 |
| BRAKEBEST | 15010060, 81-61868, 9893, 9893R, 9893RGS, BD61868 |
| BREMBO | 09.4883.10, 25252 |
| CALIFORNIA DRUM & ROTOR | 61868 |
| CENTRIC | 120.34018, 121.34018, 125.34018, 125.34018CRY, 126.34018CSL, 126.34018CSR, 126.34018SL, 126.34018SR, 127.34018L, 127.34018R, 128.34018CL, 128.34018CR, 128.34018L, 128.34018R, 227.34018L, 227.34018R, 320.34018H |
| CENTURY | 9381 |
| CONTINENTAL-CONTITECH | CW22122 |
| Casting Numbers | 210827-C, 325339, 5180 |
| Centric Parts | 120.34018, 121.34018, 125.34018, 125.34018CRY, 126.34018CSL, 126.34018CSR, 126.34018SL, 126.34018SR, 127.34018L, 127.34018R, 128.34018CL, 128.34018CR, 128.34018L, 128.34018R, 227.34018L, 227.34018R, 320.34018H |
| DAYTON WALTHER | D7911 |
| DELPHI | RB29 |
| DURA CORP | BR3455, BR3469 |
| DuraGo | BR3469, BR3455 |
| EIS BRAKES | D17426 |
| GIRLING | GR250 |
| GREN | 401002 |
| GUARDIAN | 52-61868 |
| INTERBRAKES | BW171V |
| ITM ENGINE COMPONENTS | 1602314 |
| MAGMA PRODUCTS | PMR123017 |
| MCI | 4039 |
| MIDAS | BR1492 |
| MIGHTY DISTRIBUTING SYSTEM | 3455 |
| NEWTEK AUTOMOTIVE | 3455 |
| Newtek Automotive USA | 3455 |
| PARTS MASTER | P61868 |
| PROMAX | 14-3455 |
| QUALIS | 3455 |
| QUALITEE INTERNATIONAL | 64-12-130 |
| QUALITY BRAND | 3455 |
| QUINTON HAZELL | BDC3480 |
| ROCKHILL | 3469 |
| STANDARD ROTORS AND DRUMS | 3455 |
| TEKNOMAC | 14500 |
| THE UNIVERSAL GROUP | 111550, 111690 |
| TRUSTAR | 412130, R12130 |
| TRW | 2550, DF2550S |
| UAP | 3455 |
| Universal | 111550, 111690 |
| VAICO | V2080031 |
| VERA | 3405292 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50709 |
| WAGNER | BD61868 |
| WAGNER BRAKE | BD61868 |
| WINHERE | 442370, YH2370 |
RAYBESTOS 9893R Fits Vehicles
- BMW 325es (1986-1987)
- BMW 325iX (1988-1991)
- BMW 325is (1987-1991)
- BMW 325i (1987-1993)
- BMW 325e (1984-1987)
- BMW 325 (1986-1988)
- BMW 318is (1991)
- BMW 318i (1991-1992)
