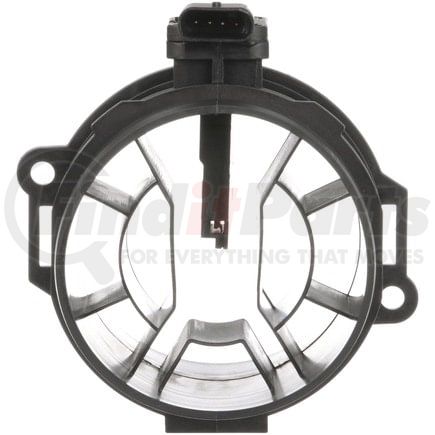

DELPHI AF10771 Part Description
Mass Air Flow Sensor
DELPHI AF10771 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Complete Assembly |
| Item Grade | Premium |
| Color | Black |
| Housing Included | Yes |
| Inlet Connection Diameter | 92 MM |
| Outlet Connection Diameter | 92 MM |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Oblong |
| Mounting Hole Quantity | 2 |
| Housing Material | Plastic |
| Terminal Quantity | 4 |
| Connector Gender | Male |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Outlet Connection Diameter | 3.6 IN |
| Inlet Connection Diameter | 3.622 IN |
| Sensor Casing Length | 104.5 MM |
| Sensor Casing Width | 121 MM |
| Voltage | 5.0 2H |
| Gasket Or Seal Included | No |
| Bolt Hole Center To Bolt Hole Center | 112.00 MM |
| Mounting Hole Diameter | 0.2 IN |
| Seal Quantity | 0 |
| Sensor Casing Length | 4.1 IN |
| Sensor Casing Width | 4.7 IN |
| Bolt Hole Center To Bolt Hole Center | 4.40 IN |
| Mounting Hole Diameter | 7 MM |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604370209 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10771 Part Interchanges
| Brand | Part Number |
|---|---|
| Echlin | 214826 |
| BWD | MA1323 |
| Volkswagen | 03N 906 461 |
| Wells | 5S15688 |
| Standard Motor Products | MAS0491 |
DELPHI AF10771 Fits Vehicles
- Volkswagen Atlas Cross Sport (2020-2021)
- Volkswagen Atlas (2018-2021)
DELPHI AF10771 Manufacturer Information
Delphi® is committed to making a difference. With a global network of more than 2,400 service centers and a presence in over 150 countries, Delphi Technologies delivers OE-specific aftermarket parts and software solutions for a wide range of passenger vehicles, light and medium commercial vehicles, heavy-duty truck and commercial vehicles, as well as agricultural, marine, and industrial equipment. The company’s comprehensive product portfolio includes components for diesel fuel systems, engine management, gasoline fuel systems, vehicle electronics, and maintenance solutions. Delphi Technologies takes pride in its state-of-the-art manufacturing facility as well as OE-level diagnostic and test equipment that produces OE-quality aftermarket components to make vehicles and trucks run cleaner, drive better, and last further.
