(888) 312-8812 Login SignupRAYBESTOS 66448R Raybestos R-Line Brake Rotor
$6549
Limited availability at this price!
In Stock
Get as soon as Wednesday, Nov 18
RAYBESTOS 66448R Part Description
Manufacturer
Product Description

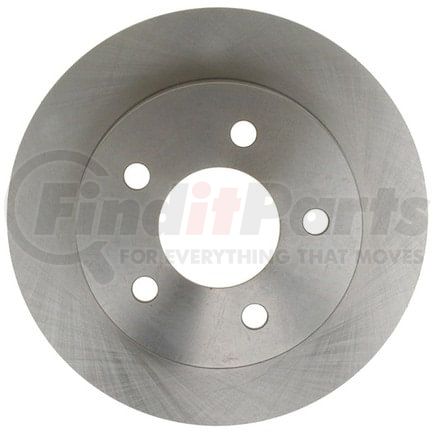

Raybestos R-Line Brake Rotor
Application Summary
2004-1994 Ford Mustang Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 66448R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.79 IN |
| Center Hole Diameter | 70.85 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.504 IN |
| Discard Thickness | 12.8 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.573 IN |
| Mounting Bolt Hole Diameter | 14.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.55 IN |
| Nominal Thickness | 13.95 MM |
| Outside Diameter | 10.51 IN |
| Outside Diameter | 266.95 MM |
| Overall Height | 1.98 IN |
| Overall Height | 50.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352365533 |
RAYBESTOS 66448R Cross References
| Brand | Part Number |
|---|---|
| 829352365533 | |
| ADVANCE AUTO PARTS | 141902, YH141902, YH141902C, YH141902P |
| AMERICAN REMANUFACTURED | 789-34042, 89-34042 |
| AUTOPART INTERNATIONAL | 25443 |
| AUTOSPECIALTY | AR8142, AR8142E |
| AUTOXTRA | 125406, 8066448, AX54017 |
| AUTOZONE | 54017, 54017B, 54017DG, DL54017 |
| BENDIX | 141902 |
| BOSCH | RBR54017 |
| BRAKE HEADQUARTERS | BR54551 |
| BRAKE PRO | 4614017 |
| BRAKEBEST | 66448, 66448FZN, 66448PER, 66448R, 66448RGS, 81-125406, BD125406 |
| BREMBO | 08.8030.85, 27111 |
| Bridgestone | 7006770 |
| CALIFORNIA DRUM & ROTOR | 125406 |
| CENTRIC | 120.61042, 120.61042CRY, 121.61042, 125.61042, 125.61042CRY, 126.61042CSL, 126.61042CSR, 126.61042SL, 126.61042SR, 127.61042CL, 127.61042CR, 127.61042L, 127.61042R, 128.61042CL, 128.61042CR, 128.61042L, 128.61042R, 227.61042L, 227.61042R, 228.61042DL, 228.61042DR, 320.61042, 321.61042 |
| CENTURY | 6083 |
| CONTINENTAL-CONTITECH | CW14703 |
| Casting Numbers | 210627-C, 325199, 540171 |
| Centric Parts | 120.61042, 120.61042CRY, 121.61042, 125.61042, 125.61042CRY, 126.61042CSL, 126.61042CSR, 126.61042SL, 126.61042SR, 127.61042CL, 127.61042CR, 127.61042L, 127.61042R, 128.61042CL, 128.61042CR, 128.61042L, 128.61042R, 227.61042L, 227.61042R, 228.61042DL, 228.61042DR, 320.61042, 321.61042 |
| DELPHI | RB384 |
| DURA CORP | BR54017 |
| DuraGo | BR54017 |
| EIS BRAKES | D17681 |
| EUROROTOR | 54111 |
| FORD | F4ZZ2C026A, F8ZZ2C026AA |
| GREN | 646501 |
| GUARDIAN | 52-125406 |
| MAGMA PRODUCTS | PMR203055 |
| MIDAS | BR1926 |
| MIGHTY DISTRIBUTING SYSTEM | 54017 |
| MONROE BRAKES | BD125406 |
| MOTORCRAFT | BRR55 |
| Motorcraft | NBRR102 |
| NEWTEK AUTOMOTIVE | 54017 |
| Newtek Automotive USA | 54017 |
| PARTS MASTER | P125406 |
| POWERSTOP | AR8142EVC |
| PROMAX | 14-54017 |
| QUALIS | 54017 |
| QUALITEE INTERNATIONAL | 64-92-050 |
| QUALITY BRAND | 54017, Q4026 |
| STANDARD ROTORS AND DRUMS | 54017 |
| THE UNIVERSAL GROUP | 102265 |
| TRUSTAR | 492050, R92050 |
| TopNotch | TN66448GEO |
| UAP | 54017 |
| Ultra Brake | 54111 |
| Universal | 102265 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50840 |
| WABCO | PS125406 |
| WABCO - Archived | PS125406 |
| WAGNER | BD125406E, BD125406 |
| WAGNER BRAKE | BD125406 |
| WINHERE | 441166, YH1166 |
| WORLDPAC | 1407-25443 |
| Wagner Brake | BD125406E |
RAYBESTOS 66448R Fits Vehicles
- Ford Mustang (1994-2004)
