RAYBESTOS 96723R Part Description
Manufacturer
Product Description

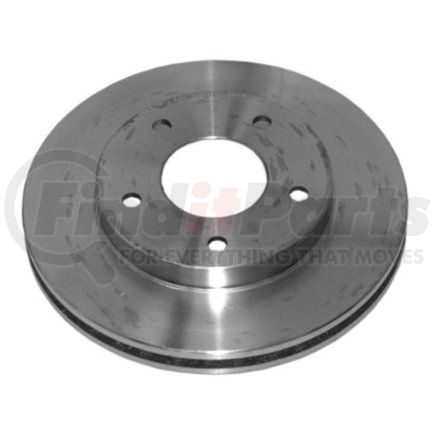

Raybestos R-Line Brake Rotor
Application Summary
2005-2001 Chrysler Sebring Front, 2005-2001 Dodge Stratus Front, 2001-1996 Mitsubishi Eclipse Front, 2001-1999 Mitsubishi Galant Front, 2000 Dodge Avenger Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96723R Specifications
Product Attributes
| Center Hole Diameter | 2.72 IN |
| Center Hole Diameter | 69.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.882 IN |
| Discard Thickness | 22.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24 MM |
| Outside Diameter | 10.08 IN |
| Outside Diameter | 256.05 MM |
| Overall Height | 1.78 IN |
| Overall Height | 45.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352372111 |
RAYBESTOS 96723R Cross References
| Brand | Part Number |
|---|---|
| 829352372111 | |
| ADVANCE AUTO PARTS | 145184, YH145247 |
| AMERICAN REMANUFACTURED | 789-16036, 89-16036, 89-26009 |
| AUTOSPECIALTY | JBR922, JBR922E |
| AUTOXTRA | 8096723, AX31251 |
| AUTOZONE | 31251, DL31179 |
| BECK/ARNLEY | 083-2732 |
| BENDIX | 145184, 145247 |
| BOSCH | 16010173, RBR31251 |
| BRAKEBEST | 16010173, 96723, 96723R, 96723RGS, BD126107 |
| BREMBO | 09.5640.20, 25365 |
| CENTRIC | 121.46042 |
| CHRYSLER | MR334997, MR955126 |
| CONTINENTAL-CONTITECH | CW24714 |
| Casting Numbers | 325050 |
| DELPHI | RB354 |
| DURA CORP | BR31251 |
| GUARDIAN | 52-126107 |
| MAGMA PRODUCTS | PMR143052 |
| MIGHTY DISTRIBUTING SYSTEM | 31251 |
| MITSUBISHI | MB928997, MR389723, MR389724, MR449330 |
| NEWTEK AUTOMOTIVE | 31251 |
| Newtek Automotive USA | 31251 |
| PROMAX | 14-31251 |
| QUALIS | 31251 |
| QUALITY BRAND | 31251 |
| STANDARD ROTORS AND DRUMS | 31251 |
| THE UNIVERSAL GROUP | 103200 |
| Universal | 103200 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51368 |
| WAGNER | BD126107, BD126107E |
| WAGNER BRAKE | BD126107, SB96723 |
| WINHERE | 662615, YH2615 |
| Wagner Brake | BD126107E |
RAYBESTOS 96723R Fits Vehicles
- Mitsubishi Galant (1999-2001)
- Mitsubishi Eclipse (1996-2001)
- Dodge Stratus (2001-2005)
- Dodge Avenger (2000)
- Chrysler Sebring (2001-2005)
