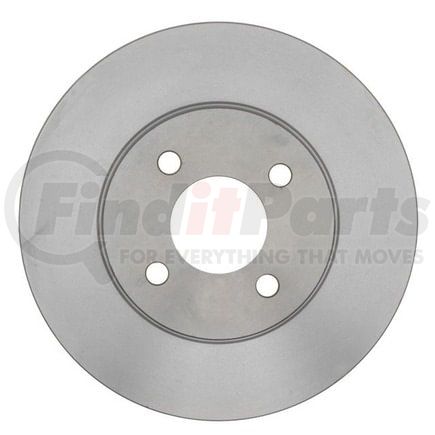

(888) 312-8812 Login SignupRAYBESTOS 7005R Raybestos R-Line Brake Rotor
$3899
Limited availability at this price!
In Stock
Get it by Tuesday, Aug 18
RAYBESTOS 7005R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
1986-1984 Chrysler LeBaron Front, 1986-1984 Plymouth Reliant Front, 1986-1984 Dodge Aries Front, 1986-1984 Dodge 600 Front, 1987-1984 Chrysler New Yorker Front, 1986-1984 Dodge Omni Front, 1986-1984 Dodge Daytona Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 7005R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.402 IN |
| Center Hole Diameter | 61 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.882 IN |
| Discard Thickness | 22.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 0.546 IN |
| Mounting Bolt Hole Diameter | 13.85 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24 MM |
| Outside Diameter | 10.26 IN |
| Outside Diameter | 260.6 MM |
| Overall Height | 1.505 IN |
| Overall Height | 38.25 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352366424 |
RAYBESTOS 7005R Cross References
| Brand | Part Number |
|---|---|
| 829352366424 | |
| ACDELCO | 177-556, 177-660 |
| ADVANCE AUTO PARTS | YH141266 |
| AMERICAN REMANUFACTURED | 789-32015, 89-32015 |
| AUTOPART INTERNATIONAL | 25031 |
| AUTOSPECIALTY | AR8315, AR8315E |
| AUTOXTRA | 607005, 807005, AX5327 |
| AUTOZONE | 5327, DL5327 |
| BECK/ARNLEY | 083-2160 |
| BOSCH | 16010234 |
| BRAKE HEADQUARTERS | BR53270 |
| BRAKE PRO | 4617005 |
| BRAKEBEST | 16010234, 7005, 7005R, 81-60739 |
| Bridgestone | 7008419 |
| CALIFORNIA DRUM & ROTOR | 60739 |
| CENTRIC | 120.63015, 121.63015 |
| CENTURY | 7005 |
| CHRYSLER | 04313593, 4313593 |
| Casting Numbers | 210271-C, 325152, 4672, 53271, 637005 |
| Centric Parts | 120.63015, 121.63015 |
| DAYTON WALTHER | D5027 |
| DELPHI | RB35 |
| DURA CORP | BR5327 |
| DuraGo | BR5327 |
| EIS BRAKES | D17005 |
| EUROROTOR | 5327 |
| FADE FREE | 60739 |
| GREN | 601002 |
| GUARDIAN | 52-60739 |
| HOLLANDER | 1194 |
| INTERBRAKES | DG40 |
| KELSEY HAYES | 14682 |
| MAGMA PRODUCTS | PMR145106 |
| MAREMONT | 7937005 |
| MCI | 5043 |
| MIDAS | BR1349 |
| MIGHTY DISTRIBUTING SYSTEM | 5327 |
| NEWTEK AUTOMOTIVE | 5327 |
| Newtek Automotive USA | 5327 |
| PARTS MASTER | P60739 |
| QUALIS | 5327 |
| QUALITEE INTERNATIONAL | 64-91-590 |
| QUALITY BRAND | 5327 |
| Qualis | 5323 |
| ROADMATES | 526063 |
| ROCKHILL | 5327 |
| SEARS | 1719, 510448 |
| STANDARD ROTORS AND DRUMS | 5327 |
| THE UNIVERSAL GROUP | 103270 |
| TRUSTAR | 491590, R91590 |
| UAP | 5327 |
| Universal | 103270 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50324 |
| WAGNER BRAKE | BD60739 |
| WINHERE | YH2157 |
RAYBESTOS 7005R Fits Vehicles
- Chrysler Daytona (1984-1986)
- Plymouth Reliant (1984-1986)
- Plymouth Caravelle (1985-1986)
- Dodge Omni (1984-1986)
- Dodge Lancer (1985-1987)
- Dodge Daytona (1984-1986)
- Dodge Charger (1984-1986)
- Dodge Aries (1984-1986)
- Dodge 600 (1984-1986)
- Chrysler Town & Country (1984-1986)
- Chrysler New Yorker (1984-1987)
- Chrysler LeBaron (1984-1986)
- Chrysler Laser (1984-1986)
- Chrysler E Class (1984)
