RAYBESTOS 96034R Part Description
Manufacturer
Product Description

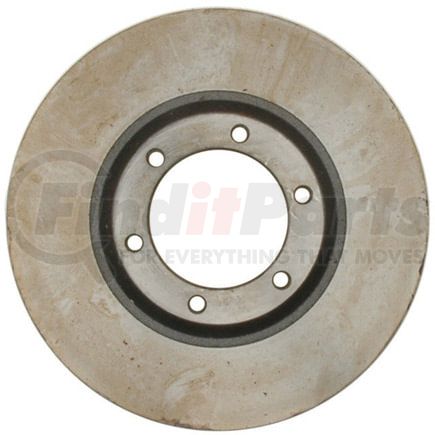

Raybestos R-Line Brake Rotor
Application Summary
1987-1984 Isuzu Pickup Front, 1986-1984 Isuzu Trooper Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96034R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.152 IN |
| Center Hole Diameter | 80.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.654 IN |
| Discard Thickness | 16.6 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.016 IN |
| Mounting Bolt Hole Circle Diameter | 102 MM |
| Mounting Bolt Hole Diameter | 4.016 IN |
| Mounting Bolt Hole Diameter | 102 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.71 IN |
| Nominal Thickness | 18.05 MM |
| Outside Diameter | 9.89 IN |
| Outside Diameter | 251.2 MM |
| Overall Height | 1.31 IN |
| Overall Height | 33.25 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352369449 |
RAYBESTOS 96034R Cross References
| Brand | Part Number |
|---|---|
| 829352369449 | |
| ADVANCE AUTO PARTS | 141459, YH141459 |
| AMERICAN REMANUFACTURED | 789-10006, 89-10006 |
| AUTOPART INTERNATIONAL | 78850 |
| AUTOSPECIALTY | JBR324, JBR324E, JBR329, JBR329E |
| AUTOXTRA | 60772 |
| AUTOZONE | 3231, 3231DG |
| BECK/ARNLEY | 080-2137, 083-2137 |
| BENDIX | 141459 |
| BRAKE PRO | 4619031 |
| BRAKEBEST | 96034, 96034R, 96034RGS, BD60772 |
| BREMBO | 09.5705.10, 25378 |
| CALIFORNIA DRUM & ROTOR | 60772 |
| CENTRIC | 120.43005, 121.43005 |
| CENTURY | 9031 |
| Casting Numbers | 210583-C, 32311, 325089 |
| Centric Parts | 120.43005, 121.43005 |
| DELPHI | RB625 |
| DURA CORP | BR3231 |
| DuraGo | BR3231 |
| EIS BRAKES | D17324, D17287 |
| EUROROTOR | IS988 |
| GIRLING | GR829, GR893 |
| GREN | 70102 |
| GUARDIAN | 52-60772 |
| GUNITE | G16040 |
| ISUZU | 8941136281, 8941136291 |
| ITM ENGINE COMPONENTS | 1601901 |
| MCI | 3807Q |
| MIDAS | BR1638 |
| MIGHTY DISTRIBUTING SYSTEM | 3231 |
| NEWTEK AUTOMOTIVE | 3231 |
| Newtek Automotive USA | 3231 |
| PARTS MASTER | P60772 |
| QUALIS | 3231 |
| QUALITEE INTERNATIONAL | 64-73-060, 64-73-100 |
| QUALITY BRAND | 3231 |
| QUINTON HAZELL | BDC3739 |
| ROADMATES | 526618 |
| ROCKHILL | 3231 |
| STANDARD ROTORS AND DRUMS | 3231 |
| THE UNIVERSAL GROUP | 126310 |
| TRUSTAR | 473060, 473100, R73060, R73100 |
| UAP | 3231 |
| Universal | 126310 |
| VERA | 3404403, 3404411 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50480 |
| WAGNER | BD60772 |
| WAGNER BRAKE | BD60772 |
| WINHERE | YH2321 |
RAYBESTOS 96034R Fits Vehicles
- Isuzu Trooper (1984-1986)
- Isuzu Pickup (1984-1987)
