(888) 312-8812 Login SignupRAYBESTOS 96066R Raybestos R-Line Brake Rotor
$3449
Limited availability at this price!
In Stock
Get as soon as Thursday, Sep 24
RAYBESTOS 96066R Part Description
Manufacturer
Product Description

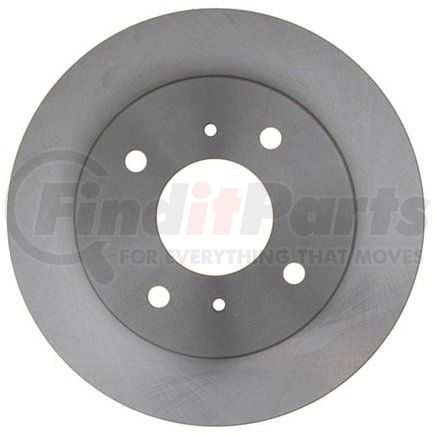

Raybestos R-Line Brake Rotor
Application Summary
1998-1989 Nissan 240SX Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96066R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.678 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.31 IN |
| Discard Thickness | 7.85 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.5 IN |
| Mounting Bolt Hole Diameter | 12.7 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.355 IN |
| Nominal Thickness | 9 MM |
| Outside Diameter | 10.16 IN |
| Outside Diameter | 258.05 MM |
| Overall Height | 1.765 IN |
| Overall Height | 44.85 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352369654 |
RAYBESTOS 96066R Cross References
| Brand | Part Number |
|---|---|
| 829352369654 | |
| ADVANCE AUTO PARTS | 141502, YH141502, YH141502C |
| AMERICAN REMANUFACTURED | 789-04042, 89-04042 |
| AUTOPART INTERNATIONAL | 78857 |
| AUTOSPECIALTY | JBR504, JBR504E |
| AUTOZONE | 31063, 31063B, 31063DG, DL31063 |
| BECK/ARNLEY | 080-2292, 080-2639, 083-2292, 083-2639, 083-2640 |
| BENDIX | 141502, 145030 |
| BRAKE PRO | 4616067 |
| BRAKEBEST | 96066, 96066R, 96066RGS |
| BREMBO | 08.5737.10, 25172 |
| CALIFORNIA DRUM & ROTOR | 61931 |
| CENTRIC | 120.42042, 121.42042, 125.42042, 125.42042CRY, 126.42042CSL, 126.42042CSR, 126.42042SL, 126.42042SR, 127.42042L, 127.42042R, 128.42042CL, 128.42042CR, 128.42042L, 128.42042R |
| CENTURY | 9421 |
| CONTINENTAL-CONTITECH | CW09718 |
| Casting Numbers | 325021 |
| Centric Parts | 120.42042, 121.42042, 125.42042, 125.42042CRY, 126.42042CSL, 126.42042CSR, 126.42042SL, 126.42042SR, 127.42042L, 127.42042R, 128.42042CL, 128.42042CR, 128.42042L, 128.42042R |
| DATSUN/NISSAN | 4320653F00, 4320668F00, 4320670F00, 4320635F01 |
| DELPHI | RB163 |
| DURA CORP | BR31063 |
| DuraGo | BR31063 |
| EIS BRAKES | D17488 |
| GREN | 35801 |
| GUARDIAN | 52-61931 |
| MAGMA PRODUCTS | PMR423033 |
| MCI | 3986 |
| MIDAS | BR1613 |
| MIGHTY DISTRIBUTING SYSTEM | 31063 |
| NEWTEK AUTOMOTIVE | 31063 |
| Newtek Automotive USA | 31063 |
| Nissan | 4320635F01, 4320653F00, 4320668F00, 4320670F00 |
| PARTS MASTER | P61931 |
| PROMAX | 14-31063 |
| QUALIS | 31063 |
| QUALITEE INTERNATIONAL | 64-76-570 |
| QUALITY BRAND | 31063 |
| ROCKHILL | 31063 |
| STANDARD ROTORS AND DRUMS | 31063 |
| THE UNIVERSAL GROUP | 109175 |
| TRUSTAR | 476570, R76570 |
| UAP | 31063 |
| Universal | 109175 |
| VERA | 3405722 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50795 |
| WAGNER | BD61931E, BD61931 |
| WAGNER BRAKE | SB96066 |
| WINHERE | 441128, YH1128 |
| Wagner Brake | BD61931E |
RAYBESTOS 96066R Fits Vehicles
- Nissan 240SX (1989-1998)
