(888) 312-8812 Login SignupRAYBESTOS 580439R Raybestos R-Line Brake Rotor
MSRP: $42.95
$3499
Save $7.96
Limited availability at this price!
In Stock
Get it by Friday, Aug 7
RAYBESTOS 580439R Part Description
Manufacturer
Product Description

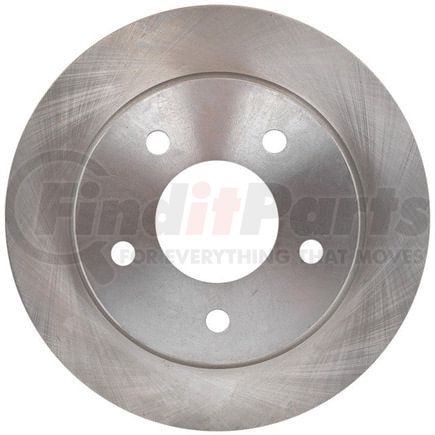

Raybestos R-Line Brake Rotor
Application Summary
1994-1990 Chevrolet Lumina Rear, 1993-1988 Oldsmobile Cutlass Supreme Rear, 1993-1988 Buick Regal Rear, 1993-1988 Pontiac Grand Prix Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 580439R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.787 IN |
| Center Hole Diameter | 70.8 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.429 IN |
| Discard Thickness | 10.9 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.528 IN |
| Mounting Bolt Hole Circle Diameter | 115 MM |
| Mounting Bolt Hole Diameter | 0.507 IN |
| Mounting Bolt Hole Diameter | 12.9 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.492 IN |
| Nominal Thickness | 12.5 MM |
| Outside Diameter | 10.1 IN |
| Outside Diameter | 256.55 MM |
| Overall Height | 1.11 IN |
| Overall Height | 28.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352572085 |
RAYBESTOS 580439R Cross References
| Brand | Part Number |
|---|---|
| 829352572085 | |
| ACDELCO | 177-735 |
| ADVANCE AUTO PARTS | YH141401 |
| Autoxtra | AX5567 |
| BRAKEBEST | 580439, 580439R, 580439RGS |
| Bridgestone | 7070351 |
| CENTRIC | 120.62029, 121.62029, 125.62029, 126.62029SL, 126.62029SR, 127.62029L, 127.62029R |
| Centric Parts | 120.62029, 121.62029, 125.62029, 126.62029SL, 126.62029SR, 127.62029L, 127.62029R |
| DURA CORP | BR55136 |
| Dura Corp | BR5567 |
| DuraGo | BR5567 |
| GM | 14087871, 18017537, 18020471, 19122177 |
| General Motors | 14087871, 18017537, 18020471, 19122177 |
| MAGMA PRODUCTS | PMR223032 |
| MONROE BRAKES | BD61851 |
| NEWTEK AUTOMOTIVE | 55136 |
| Newtek Automotive USA | 55136 |
| QUALITY BRAND | 5567C |
| Qualis | 5567 |
| WAGNER | BD61851 |
RAYBESTOS 580439R Fits Vehicles
- Pontiac Grand Prix (1988-1993)
- Oldsmobile Cutlass Supreme (1988-1993)
- Chevrolet Lumina (1990-1994)
- Buick Regal (1988-1993)
