CENTRIC part description

Product Description

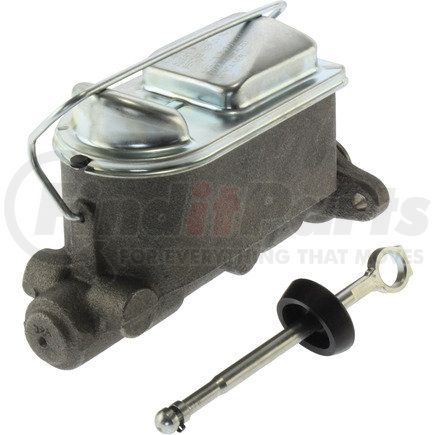

Centric Premium Brake Master Cylinder

Features & Benefits

  • Match O.E. parts in quality; configuration and fitment. Complete with reservoirs; switches and floats. Original aluminum casting body design where applicable. Manufactured under the highest quality standards by OEM and OES manufacturers

Product Attributes

Publication Bore [cntrc] 1"
Push Rod: Length / Depth [cntrc] In 0
Boss, Nipple Or Port: Front, Right: #a [cntrc] 7/16"-24 inv
Boss, Nipple Or Port: Rear, Right: #a [cntrc] 9/16"-18 inv
Weight [cntrc] Lbs 8.2
Weight [cntrc] Kgs 3.73
Primary Outlet Flare Type [cntrc] Inverted
Secondary Outlet Flare Type [cntrc] Inverted
Product Grade [cntrc] Premium
Reservoir Material Cast Iron
Mounting Hardware Included No
Mounting Hole Quantity 2
Master Cylinder Bore Diameter 1.000 IN
Master Cylinder Bore Diameter 25.400 MM
Brake Booster Included No
Master Cylinder Cap Included Yes
Master Cylinder Material Cast Iron
Push Rod Included Yes
Reservoir Included Yes
Reservoir Type Single
Primary Outlet Thread Diameter 0.5625 IN
Secondary Outlet Thread Diameter 0.5625 IN
Bleeder Hoses Included No
Port Quantity 2
Mounting Bracket Included No
9275 18 IN
9276 18 IN
Bore Type Straight
Bore Size 25.400 MM
Bore Size 1.000 IN
Secondary Outlet Thread Size 9/16"-18
Primary Outlet Thread Size 9/16"-18
Primary Outlet Flare Type Inverted
Secondary Outlet Flare Type Inverted
Primary Bore Diameter 25.400 MM
Primary Bore Diameter 1.000 IN
Reservoir Style Integral

Additional Information

Harmonized Tariff Code (HTS) 8413919050
NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
UPC 805890009191

Part Interchanges

CENTRIC 130.65026 Cross Reference

We have 3 alternatives for the 130.65026 by CENTRIC:

Fits Vehicles

  • Ford F-150 (1985)
  • Ford F-100 (1980-1983)
