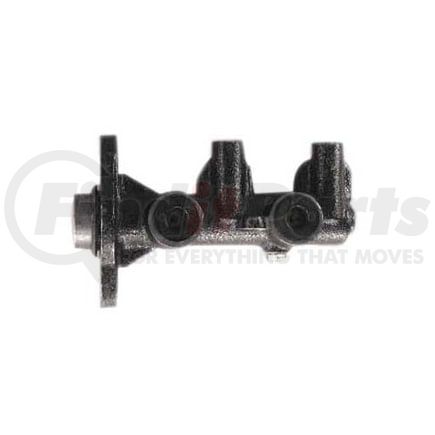

Centric 130.43001 - Premium Brake Master Cylinder
$10449
MSRP: $130.77
Save: $26.28
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Premium Brake Master Cylinder
Product Attributes
| Push Rod: Length / Depth [cntrc] In | 0.967 |
| Boss, Nipple Or Port: Bottom [cntrc] | M20-1.00 |
| Weight [cntrc] Lbs | 2.4 |
| Primary Outlet Flare Type [cntrc] | Inverted |
| Product Grade [cntrc] | Premium |
| Publication Bore [cntrc] | 13/16" |
| Boss, Nipple Or Port: Front, Left: #a [cntrc] | M10-1.00 inv |
| Boss, Nipple Or Port: Rear: #a [cntrc] | M10-1.00 inv |
| Weight [cntrc] Kgs | 1.09 |
| Secondary Outlet Flare Type [cntrc] | Open |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 20.638 MM |
| Master Cylinder Bore Diameter | 0.813 IN |
| Brake Booster Included | No |
| Master Cylinder Cap Included | No |
| Master Cylinder Material | Cast Iron |
| Push Rod Included | No |
| Reservoir Included | No |
| Primary Outlet Thread Diameter | 10.000 MM |
| Secondary Outlet Thread Diameter | 20.000 MM |
| Bleeder Hoses Included | No |
| Port Quantity | 4 |
| Mounting Bracket Included | No |
| Secondary Outlet Thread Pitch | 1.00 MM |
| Primary Outlet Thread Pitch | 1.00 MM |
| Bore Type | Straight |
| Bore Size | 20.638 MM |
| Bore Size | 0.813 IN |
| Secondary Outlet Thread Size | M20-1.00 |
| Primary Outlet Thread Size | M10-1.00 |
| Primary Outlet Flare Type | Inverted |
| Secondary Outlet Flare Type | Open |
| Primary Bore Diameter | 20.638 MM |
| Primary Bore Diameter | 0.813 IN |
| Reservoir Style | Removable |
Part Interchanges
CENTRIC 130.43001 Cross Reference
We have 3 alternatives for the 130.43001 by CENTRIC:
Fits Vehicles
- Geo Spectrum (1989)
- Chevrolet Spectrum (1985-1988)
- Isuzu I-Mark (1985-1989)
