(888) 312-8812 Login SignupWEBB 20231--5T40 PALLET OF 40 OF 20231--5T Tn-Hub Assembly W/ ABS Ring Long Studs (Must purchase Quantity of 40)
Tap to view 2 more
$45099
Limited availability at this price!
In Stock
Get it by Friday, Jul 24
WEBB 20231--5T40 Part Description
Manufacturer
Price per each Hub. PALLET OF 20231--5T. Must purchase a quantity of 40.

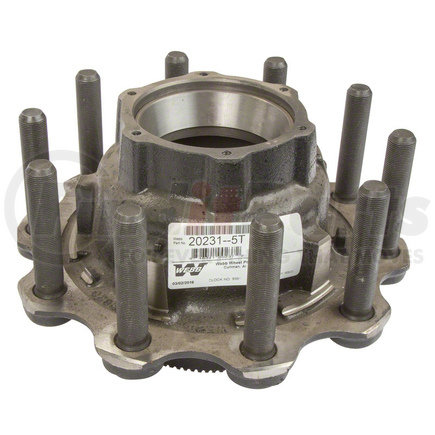

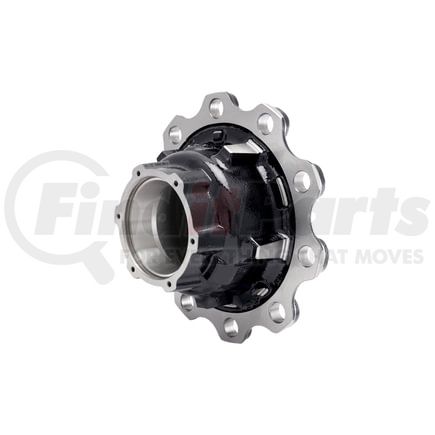

Tn-Hub Assembly W/ ABS Ring Long Studs
HUB INFORMATION
| Part Number | 20231--5T |
| Hub Number | 2023 |
| Description | 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud |
| Hub Material | Cast |
| Mounting Type | FN |
| Drum Type | Outboard |
| Disc Wheel | Aluminum (Dual) |
| Wheel Stud | 101160 |
| Stud Stand Out | 3.94 |
| ABS Ring | Direct Machined ABS |
| Drum Options | 61577F, 68985F, 66800F, 66864F, 66884F, 66814F, 66854F, 66871B |
| Drum Type | Outboard |
| Number of Studs | 10 |
| Bolt Circle | 11.25 |
| Stud Description | M22 x 1.5MM Serrated Stud |
| Outer Bearing Cup | HM212011 |
| Outer Bearing Cone | HM212049 |
| Inner Bearing Cup | HM218210 |
| Inner Bearing Cone | HM218248 |
| Webb Axle Group | 2 |
| Cup Code | 1 |
| Notes | Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness. This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. Grease Hubcap Kit: 73655. |
WEBB 20231--5T40 Cross References
| Brand | Part Number |
|---|---|
| W301304A, WWD202315T40 |
WEBB 20231--5T40 Customer Reviews
No reviews yet
Be the first to review this product!
WEBB 20231--5T40 Manufacturer Information
In business since 1946, Webb® has been a trusted brand for high-quality brake and wheel hub components in the heavy duty transportation industry. The company maintains an extensive catalog of OEM and aftermarket brake drums, brake rotors and calipers, and wheel hubs for Class 6, 7, and 8 trucks and heavy duty trailers. Each Webb product is made of premium materials and engineered for reduced weight without compromising structural strength or balance. All parts are also manufactured using the latest innovations, including advanced wear indicators and cool running vent technology to help minimize wear and make maintenance and repairs easier. Combined with a first-class customer service and after-sales support, customers can count on Webb products to keep their trucks running safely and smoothly for years to come.
