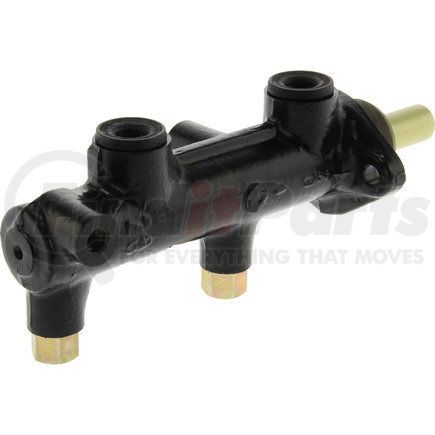

Centric 130.33106 - Centric Premium Brake Master Cylinder
$30849
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Brake Master Cylinder
Features & Benefits
- Match O.E. parts in quality; configuration and fitment. Complete with reservoirs; switches and floats. Original aluminum casting body design where applicable. Manufactured under the highest quality standards by OEM and OES manufacturers
Product Attributes
| Boss, Nipple Or Port: Bottom [cntrc] | M12-1.00 bbl |
| Secondary Outlet Flare Type [cntrc] | Bubble |
| Product Grade [cntrc] | Premium |
| Publication Bore [cntrc] | 23mm |
| Weight [cntrc] Kgs | 1 |
| Push Rod: Length / Depth [cntrc] In | 2.08 |
| Weight [cntrc] Lbs | 2.2 |
| Boss, Nipple Or Port: Front, Left: #a [cntrc] | M10-1.00 bbl |
| Primary Outlet Flare Type [cntrc] | Bubble |
| Boss, Nipple Or Port: Rear, Right: #a [cntrc] | M10-1.00 bbl |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 23.000 MM |
| Master Cylinder Bore Diameter | 0.906 IN |
| Brake Booster Included | No |
| Master Cylinder Cap Included | No |
| Master Cylinder Material | Cast Iron |
| Push Rod Included | No |
| Reservoir Included | No |
| Primary Outlet Thread Diameter | 10.000 MM |
| Secondary Outlet Thread Diameter | 12.000 MM |
| Bleeder Hoses Included | No |
| Port Quantity | 3 |
| Mounting Bracket Included | No |
| Secondary Outlet Thread Pitch | 1.00 MM |
| Primary Outlet Thread Pitch | 1.00 MM |
| Bore Type | Straight |
| Bore Size | 23.000 MM |
| Bore Size | 0.906 IN |
| Secondary Outlet Thread Size | M12-1.00 |
| Primary Outlet Thread Size | M10-1.00 |
| Primary Outlet Flare Type | Bubble |
| Secondary Outlet Flare Type | Bubble |
| Primary Bore Diameter | 23.000 MM |
| Primary Bore Diameter | 0.906 IN |
| Reservoir Style | Removable |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8413919050 |
| UPC | 805890000525 |
Part Interchanges
CENTRIC 130.33106 Cross Reference
We have 2 alternatives for the 130.33106 by CENTRIC:
Fits Vehicles
- Audi 5000 (1980-1981)
