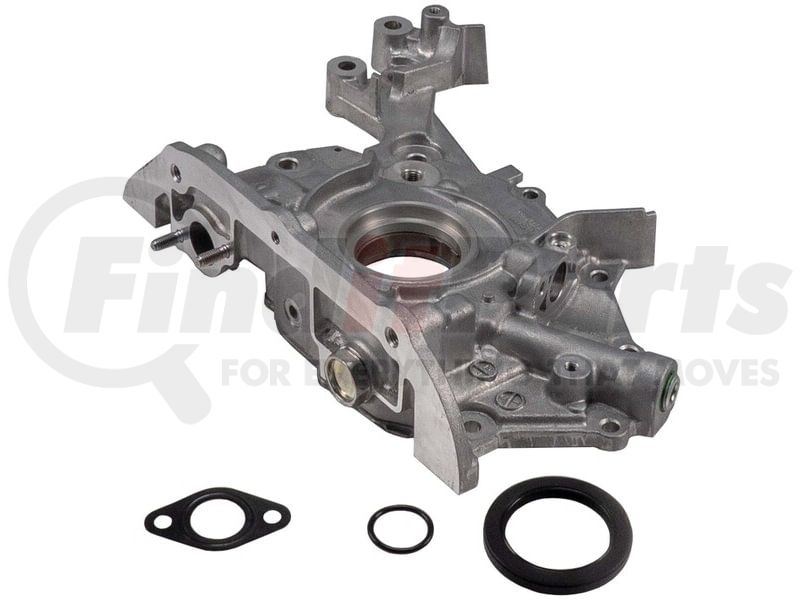

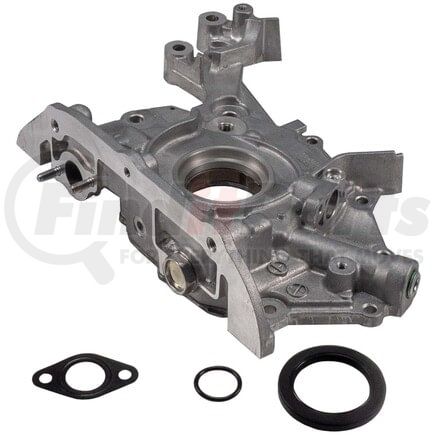

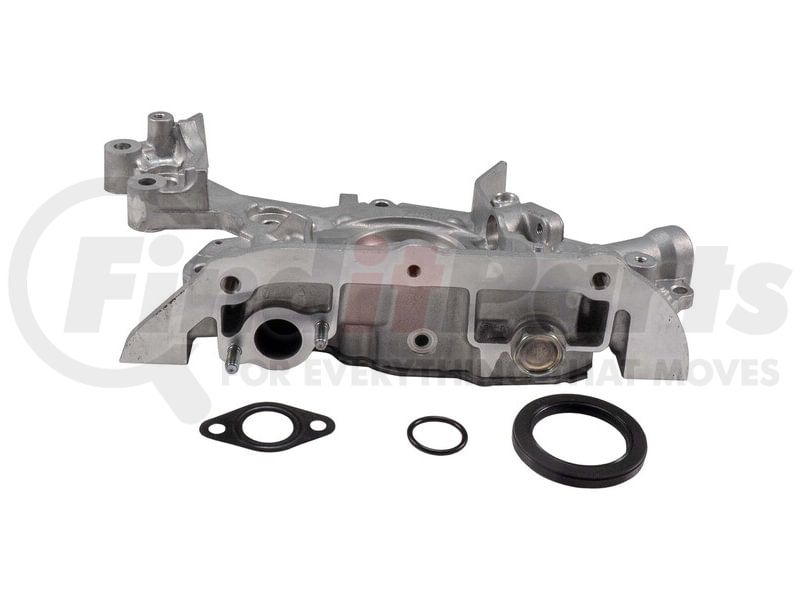

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS M583 M583 Stock Replacement : Standard Volume, Standard Pressure, Aluminum Oil Pump With Gasket and Seals
Tap to view 4 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MELLING ENGINE PRODUCTS M583 Part Description
MELLING ENGINE PRODUCTS M583 Specifications
Product Attributes
| Title | Engine Oil Pump |
| Width | 12.25 IN |
| Width | 311.0 MM |
| Height | 8.25 IN |
| Height | 210.0 MM |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 13 |
| Housing Material | Aluminum |
| Drive Type | Crankshaft |
| Rotor Material | Steel |
| Oil Pump Type | Rotary |
| Pickup Tube Diameter | 0.8 IN |
| Pickup Tube Diameter | 20.0 MM |
| Mounting Hole Diameter | 0.432 IN |
| Mounting Hole Diameter | 9.0 MM |
| Adjustable Bypass Pressure | No |
| Alternate Pressure Springs Included | No |
| Adjustable Pickup Screen | No |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | Standard Volume |
| Gears Included | Not Applicable |
| Pickup Screen Included | No |
| Intermediate Shaft Included | Not Applicable |
| Inlet Size (in) | 0.787 |
| Inlet Size (mm) | 20.00 |
| Cover Material | Cast Iron |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Finish | Rust Preventative |
| Governor Spinner Included | No |
| Guide Included | No |
| Nylon Bushing Included | No |
| O-Ring Included | Yes |
| Pump Cover Included | Yes |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Spacer Included | No |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8413309060 |
| UPC | 00729295106166 |
MELLING ENGINE PRODUCTS M583 Cross References
| Brand | Part Number |
|---|---|
| AISIN | OPT-805 |
| Enginetech | N/A |
| ITM Engine Components | N/A |
| MELLING ENGINE PRODUCTS | M583 |
| N/A | M583, N/A, OPT034C |
| Safety Auto Parts Corp | N/A |
| Toyota | 15100-0A030 |
MELLING ENGINE PRODUCTS M583 Fits Vehicles
- Toyota Camry (2002-2003)
