(888) 312-8812 Login SignupFRAM XG11794 Cartridge Oil Filter
Tap to view 5 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM XG11794 Part Description
Manufacturer
Product Description
FRAM, XG11794, Oil Filter
Features & Benefits
- Proven protection for up to 20,000 miles (32,000 kilometers)
- Synthetic blend media provides 99%+ filtration efficiency*
- Optimized for synthetic motor oil
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today's engines

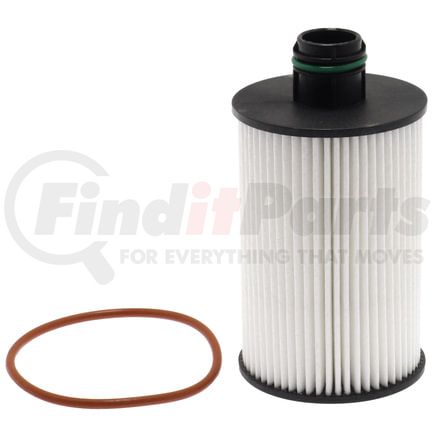

Cartridge Oil Filter
Cartridge Oil Filter
FRAM XG11794 Specifications
Product Attributes
| Filter Media Material | Synthetic |
| Height | 4.913 IN |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Filter Type | Cartridge |
| Housing Color | NA |
| Non Slip Grip | No |
| Torque Nut | No |
| Top Inside Diameter | 1.685 IN |
| Outer Diameter Bottom | 2.598 IN |
| Grade | Ultimate |
| Grade Type | Premium |
| Inside Diameter Bottom | 0.708 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring (1) Inside Diameter | 0.807 IN |
| O-ring (1) Outside Diameter | 0.905 IN |
| O-ring (1) Thickness | 0.098 IN |
| O-ring Inside Diameter | 2.913 IN |
| O-ring Outside Diameter | 3.072 IN |
| O-ring Thickness | 0.141 IN |
| O-Rings Included | Yes |
| Outer Diameter Top | 2.598 in |
| Replacable Filter | Yes |
| Reusable | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Gasket Or Seal Included | Yes |
| Housing Color | NA |
| Outer Diameter Bottom | 2.598 in |
| Top Inside Diameter | 1.685 in |
| Torque Nut | No |
| Bottom Inside Diameter | 0.708 IN |
| Grade Type | Premium |
| Outside Diameter Top | 2.598 in |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100575906 |
| UNSPSC | 15121501 |
FRAM XG11794 Cross References
| Brand | Part Number |
|---|---|
| Baldwin | P7517 |
| Carquest | 94206 |
| Carquest Premium Filters | 94206 |
| Champ | P1014 |
| Chrysler | 68109834AA, 68229402AA, 68492616AA |
| Defense Filters | DL11794 |
| FRAM Drive | FD11794 |
| FRAM Extra Guard | CH11794 |
| FRAM Tough Guard | TG11794 |
| FRAM Ultra Synthetic | XG11794 |
| FVP | G68109834AA |
| FVP Filters | G68109834AA |
| Factory Motor Parts | G68109834AA |
| Fiat | K68109834AA, K68229402AA |
| Firestone | P1014 |
| Hastings | LF696 |
| Jura Filtration | SO8044 |
| LUBER-FINER | P1014 |
| Mobil | P1014 |
| NAPA | 100060 |
| NAPA Gold Filters | 100060 |
| NAPA ProSelect Filters | 2100060 |
| PUREPRO | L38157, PL8157, PL91014 |
| Parts Master | WL610060 |
| Pennzoil | PZ189 |
| Performax | PO-189 |
| Prime Guard | POF8157 |
| Prime Guard Filters - Archived | POF8157 |
| Purolator | L38157 |
| STP | S11794, S11794XL |
| STP Filters | S11794, S11794XL |
| Service Champ | CF8157, WP1014 |
| Sofima | S1079PE |
| UFI | 25.079.01 |
| Valvoline | VO-142 |
| Warner | VO-142, WP1014 |
| Warner Filters | WP1014 |
| Wix | WL10060 |
FRAM XG11794 Fits Vehicles
- Suzuki Aerio (2002)
- Ram 1500 Classic (2019)
- Ram 1500 (2014-2018)
- Jeep Grand Cherokee (2014-2020)
FRAM XG11794 Customer Reviews
No reviews yet
Be the first to review this product!
FRAM XG11794 Manufacturer Information
FRAM® is all-set to "Filter out the Nonsense." With an origin that dates back to 1932, this brand has been globally recognized as the filter authority for its world-class filtering solutions that offer maximum engine protection, unparalleled filtering performance, and superior dirt-holding capacity. FRAM provides the industry with first-rate air filters, oil filters, heavy-duty commercial filters that help keep engines running efficiently, the way a well-filtered machine should. Among FRAM's popular products are the FRAM Extra Guard air filter, Fresh Breeze cabin air filter, Titanium oil filter, heavy-duty hydraulic, coolant, or fuel filters, and many others. Whether you are a fleet manager, a seasoned mechanic, or an experienced do-it-yourselfer, FRAM will provide you with filters that deliver efficiency, quality, reliability, performance, and durability at competitive prices.
FRAM XG11794 Questions & Answers
No questions yet
Be the first to ask a question about this product!
