Centric 402.67013 - Centric Premium Hub and Bearing Assembly; With Integral ABS
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description

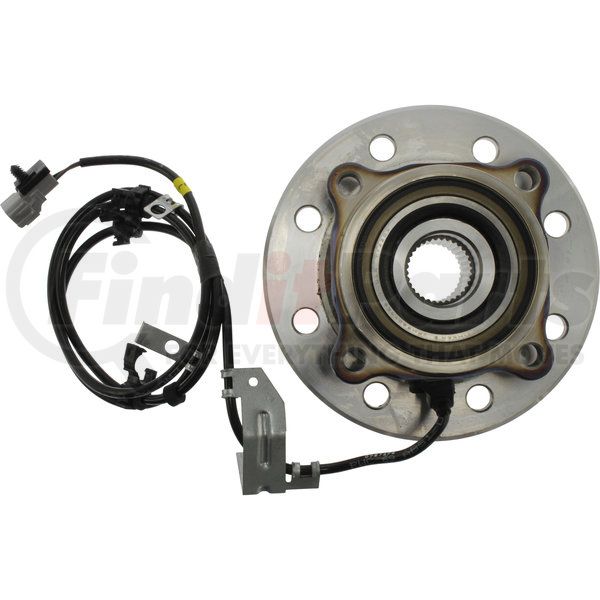

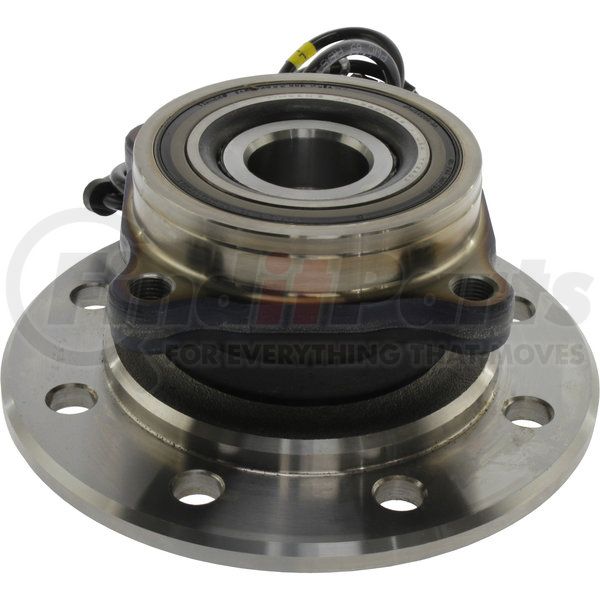

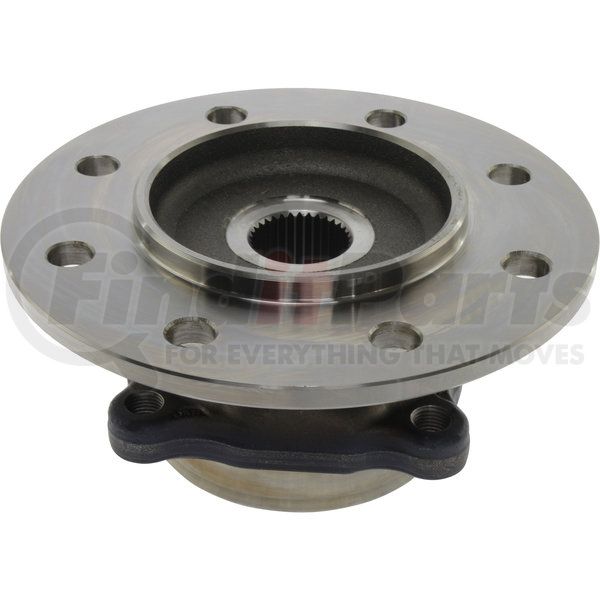

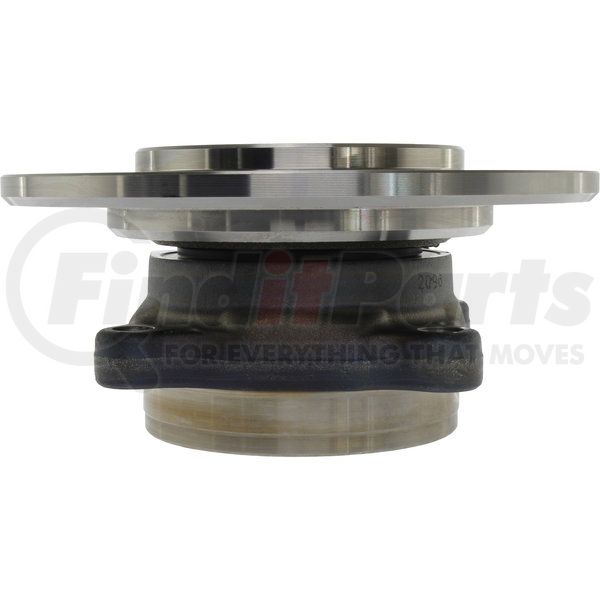

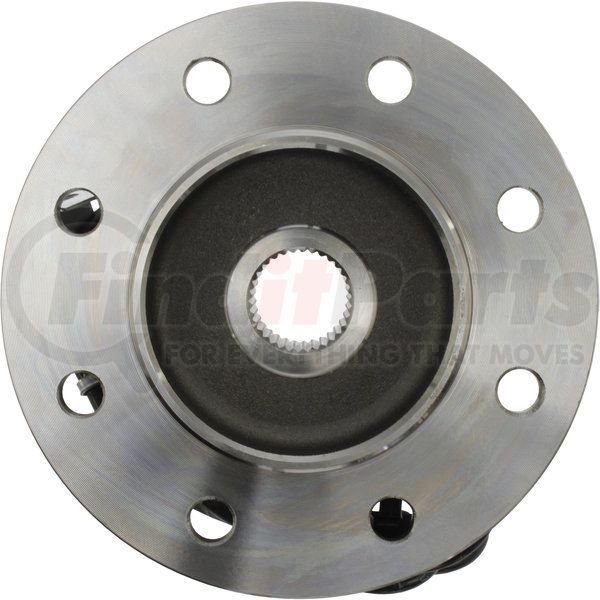

Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017

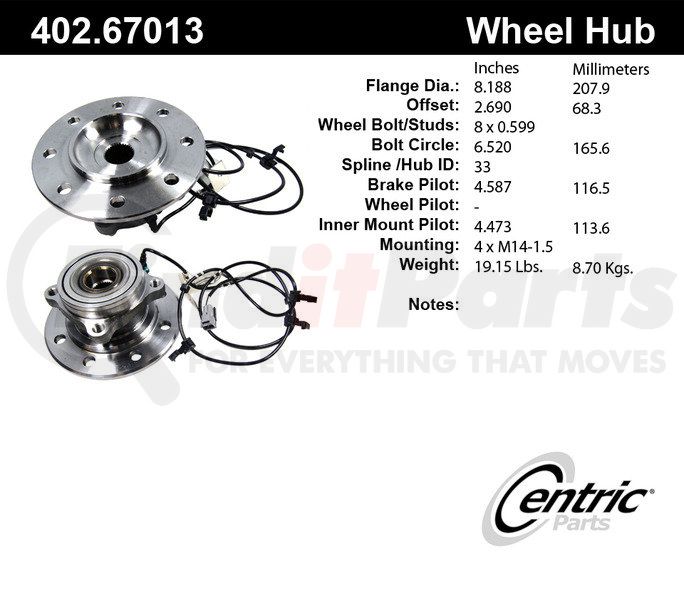

Product Attributes
| Off-set [cntrc] In | 68.330 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Inner Mount Pilot [cntrc] Mm | 113.610 |
| Product Grade [cntrc] | Premium |
| Off-set [cntrc] Mm | 2.690 |
| Inner Mount Pilot [cntrc] In | 4.473 |
| Bolt Circle Diameter [cntrc] In | 6.520 |
| Bolt Circle Diameter [cntrc] Mm | 165.610 |
| Mouting Thread Size [cntrc] Mm | 14.000 |
| Mounting Hole Qty [cntrc] | 4 |
| Spline Quantity | 33 |
| Wheel Stud Size | 14.000 MM |
| Brake Pilot Diameter | 116.510 MM |
| Brake Pilot Diameter | 4.587 IN |
| Wheel Stud Quantity | 6 |
| Wheel Studs Included | Yes |
| Flange Diameter | 8.188 IN |
| Flange Diameter | 207.980 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8482105016 |
| UPC | 805890564843 |
Part Interchanges
Fits Vehicles
- Dodge Ram 3500 (1997-1999)
