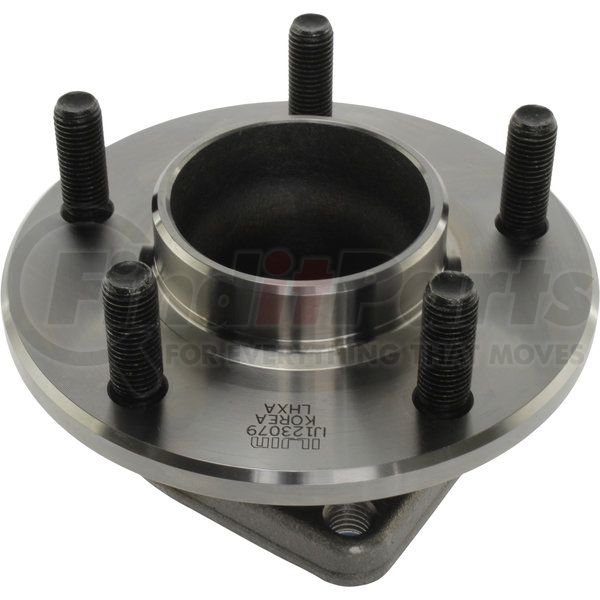

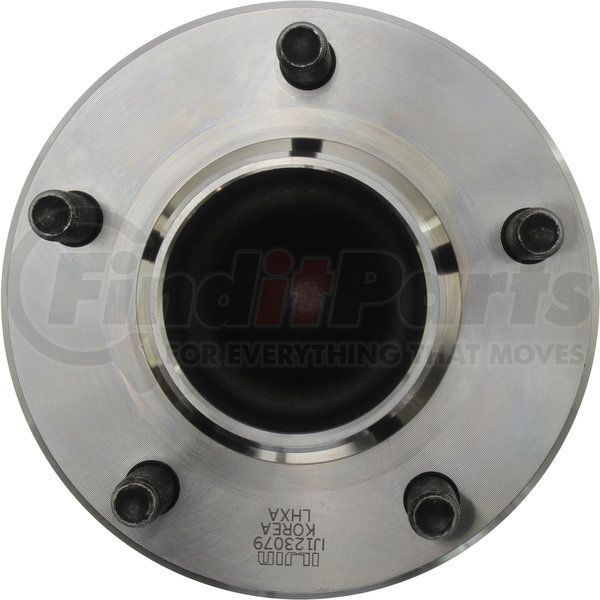

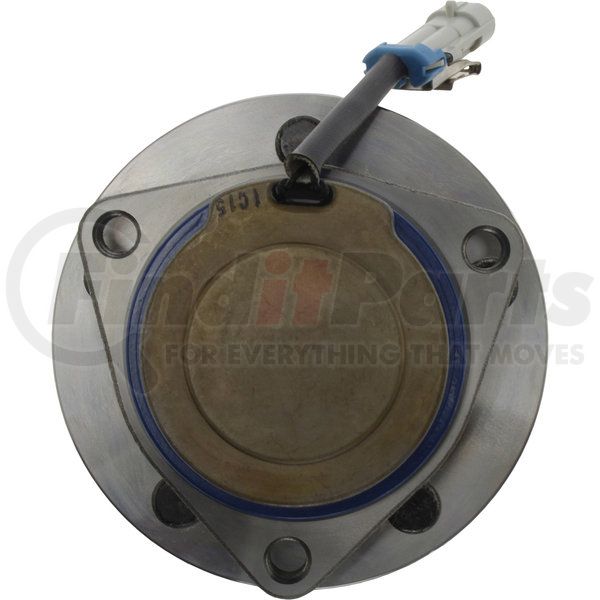

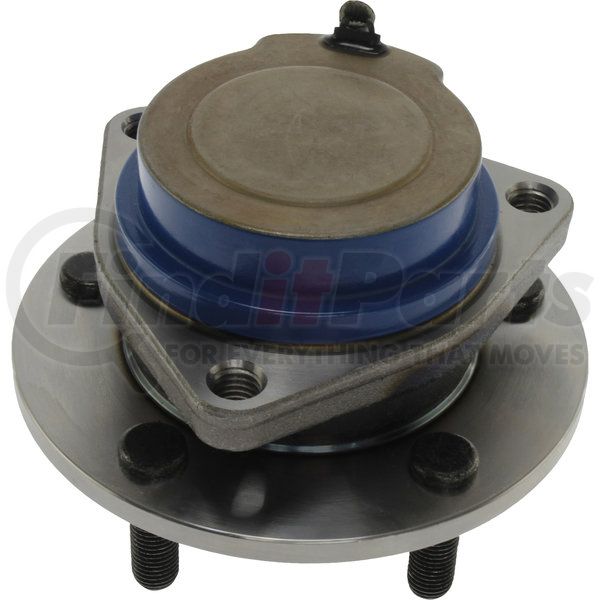

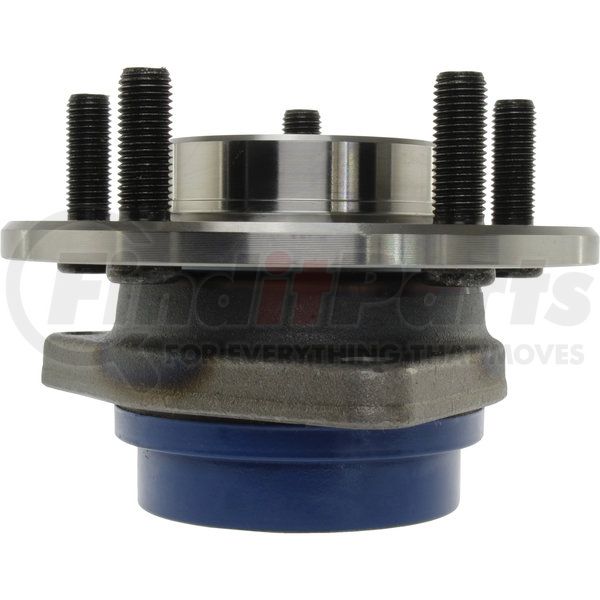

Centric 407.62004 - Centric Premium Hub and Bearing Assembly; With Integral ABS
$17149
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

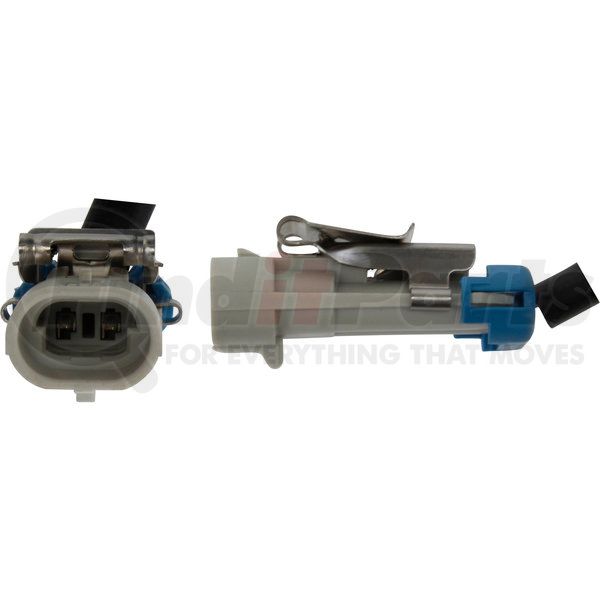

Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Product Attributes
| Off-set [cntrc] Mm | 1.644 |
| Mounting Thread Pitch [cntrc] Mm | 1.750 |
| Mounting Hole Qty [cntrc] | 3 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Off-set [cntrc] In | 41.760 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Inner Mount Pilot [cntrc] Mm | 89.410 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Product Grade [cntrc] | Premium |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 69.670 MM |
| Wheel Pilot Diameter | 2.743 IN |
| Brake Pilot Diameter | 70.130 MM |
| Brake Pilot Diameter | 2.761 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.715 IN |
| Flange Diameter | 145.160 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| UPC | 805890567882 |
Part Interchanges
Fits Vehicles
- Saturn Relay (2005)
- Pontiac Montana (2005)
- Chevrolet Uplander (2005)
- Cadillac STS (2005-2011)
- Buick Terraza (2005)
- Cadillac CTS (2003-2007)
- Buick Rendezvous (2002-2007)
