CENTRIC 400.39006 - Premium Hub and Bearing Assembly, With ABS
$25349
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

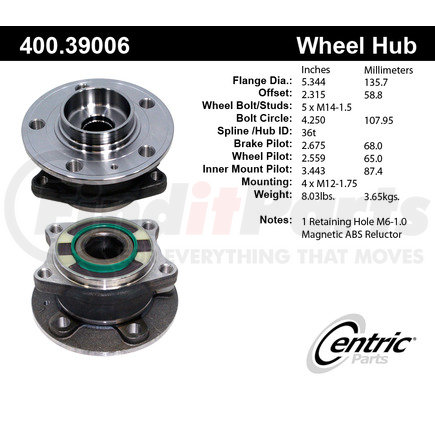

Centric Premium Hub and Bearing Assembly; With ABS
Application Summary
Volvo 960 1997-1995, S60 2009-2002, S80 2006-2004, S90 1998-1997, V70 2007-2001, V90 1998-1997, XC70 2007-2003
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Centric Parts; Centric; C-Tek; Centric Hubs; C-Tek Hubs; Hubs & bearings; Centric Parts Hub assembly; Centric Wheel Hub; Centric Wheel bearing; C-Tek Wheel Hub; C-Tek wheel bearing
Product Attributes
| Spline Quantity | 36 |
| Wheel Stud Size | 14.000 MM |
| Wheel Pilot Diameter | 65.000 MM |
| Brake Pilot Diameter | 67.950 MM |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.344 IN |
| Bolt Circle Diameter [cntrc] In | 4.250 |
| Bolt Circle Diameter [cntrc] Mm | 107.950 |
| Inner Mount Pilot [cntrc] In | 3.443 |
| Inner Mount Pilot [cntrc] Mm | 87.450 |
| Mounting Hole Qty [cntrc] | 4 |
| Mounting Thread Pitch [cntrc] Mm | 1.750 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Notes [cntrc] | 1 Retaining Hole M6-1.0; Inner Magnetic ABS Encoder Seal |
| Off-set [cntrc] In | 59.030 |
| Off-set [cntrc] Mm | 2.324 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
Additional Information
| Country of Origin (Primary) | DE |
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890562887 |
Fits Vehicles
- Volvo S80 (2004-2006)
- Volvo XC70 (2003-2007)
- Volvo V90 (1997-1998)
- Volvo V70 (2001-2007)
- Volvo S90 (1997-1998)
- Volvo S60 (2002-2009)
- Volvo 960 (1995-1997)
