Centric 406.51011 - Centric Premium Hub and Bearing Assembly; With ABS Tone Ring
$13099
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

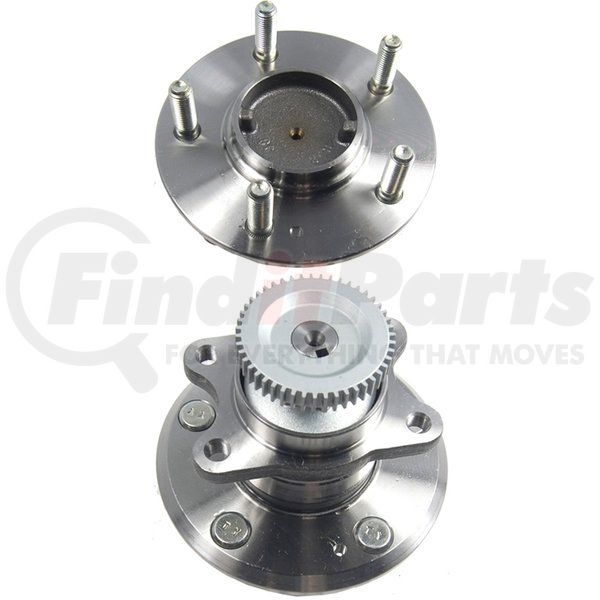

Centric Premium Hub and Bearing Assembly; With ABS Tone Ring
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017

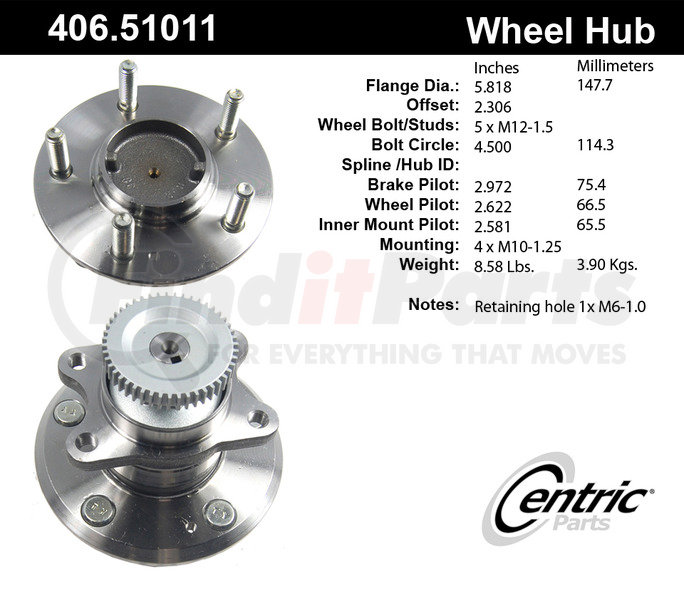

Product Attributes
| Off-set [cntrc] In | 58.570 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Inner Mount Pilot [cntrc] In | 2.581 |
| Mouting Thread Size [cntrc] Mm | 10.000 |
| Product Grade [cntrc] | Premium |
| Off-set [cntrc] Mm | 2.306 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Inner Mount Pilot [cntrc] Mm | 65.560 |
| Mounting Hole Qty [cntrc] | 4 |
| Mounting Thread Pitch [cntrc] Mm | 1.250 |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 66.600 MM |
| Wheel Pilot Diameter | 2.622 IN |
| Brake Pilot Diameter | 75.490 MM |
| Brake Pilot Diameter | 2.972 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.818 IN |
| Flange Diameter | 147.780 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | KR |
| UPC | 805890567233 |
Part Interchanges
Fits Vehicles
- Hyundai XG350 (2002-2005)
- Hyundai XG300 (2001)
