ADVICS R6F293U Part Description
Manufacturer
Product Description

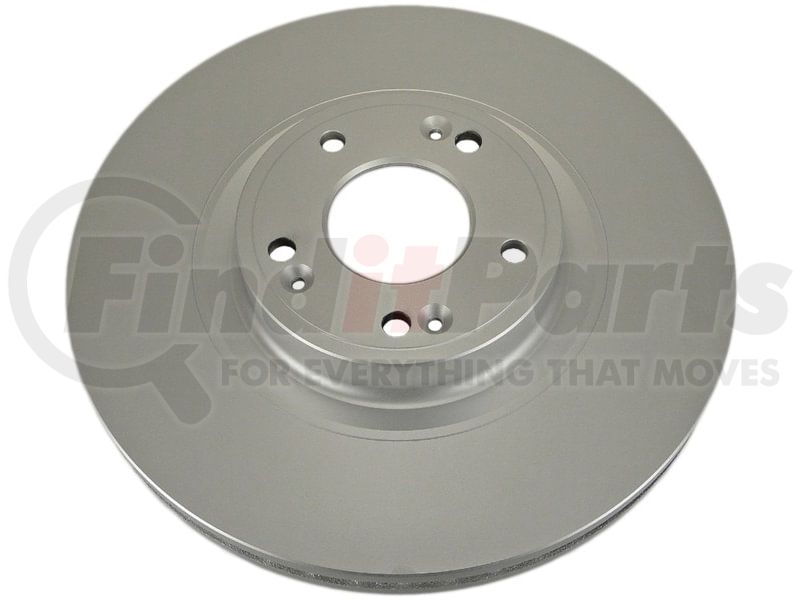

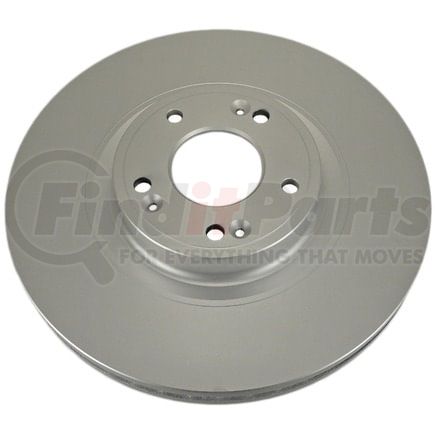

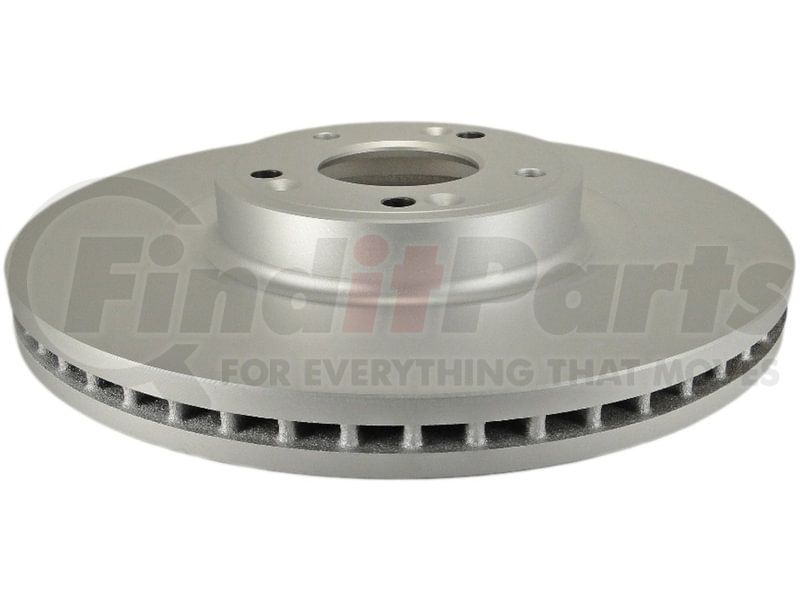

ADVICS OE Replacement Disc Brake Rotor
Features & Benefits
- Constructed to OEM weight, vane count and air gap using high carbon metallurgy to maintain thermal stability reducing opportunities for warping while providing longer pad and rotor life. Corrosion protection coating applied to match OEMs.
ADVICS R6F293U Specifications
Product Attributes
| Material | High Carbon |
| Discard Thickness | 1.118 IN |
| Nominal Thickness | 1.181 IN |
| Brake Surface Finish | Non-Directional |
| Overall Height | 2.224 IN |
| Outside Diameter | 12.992 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 69 MM |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| 9448 | 5 EA |
| Discard Thickness | 28.4 MM |
| Nominal Thickness | 30.0 MM |
| Overall Height | 56.5 MM |
| Outside Diameter | 330.0 MM |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309930 |
| UPC | 04562372124389 |
ADVICS R6F293U Cross References
ADVICS R6F293U Fits Vehicles
- Hyundai Genesis (2009-2014)
