RAYBESTOS 8574 Part Description
Manufacturer
Product Description

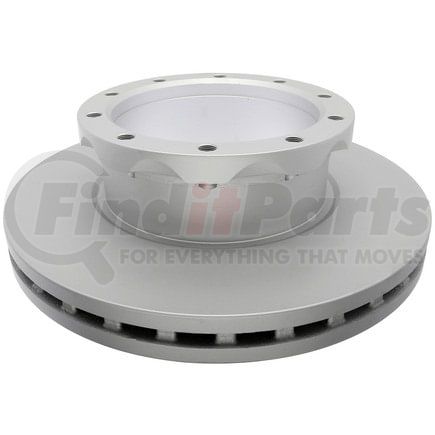

Raybestos Specialty - Truck Coated Brake Rotor
Application Summary
2019-2004 Prevost High Decker Front, 2019-2004 Prevost High Decker Rear, 2019-2007 Prevost X3 Coach Front, 2019-2007 Prevost X3 Coach Rear, 2019-2010,2008-2006,2004 Prevost Shell Front, 2019-2010,2008-2006,2004 Prevost Shell Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
Brake Parts Inc Raybestos Specialty - Truck Coated Disc Brake Rotor
RAYBESTOS 8574 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 7.996 IN |
| Center Hole Diameter | 203.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.457 IN |
| Discard Thickness | 37 MM |
| Harmonize Code | 8708.30.5030 |
| Hat Finish | Coated |
| Mounting Bolt Hole Circle Diameter | 9.252 IN |
| Mounting Bolt Hole Circle Diameter | 235 MM |
| Nominal Thickness | 1.772 IN |
| Nominal Thickness | 45 MM |
| Outside Diameter | 16.921 IN |
| Outside Diameter | 429.8 MM |
| Overall Height | 5.16 IN |
| Overall Height | 131.05 MM |
| Rust Resistant Coating | Yes |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213387513 |
RAYBESTOS 8574 Cross References
RAYBESTOS 8574 Fits Vehicles
- Prevost XL2 (2004-2009, 2011-2013)
- Prevost X3 Coach (2007-2019)
- Prevost Shell (2004, 2006-2008, 2010-2019)
- Prevost High Decker (2004-2019)
