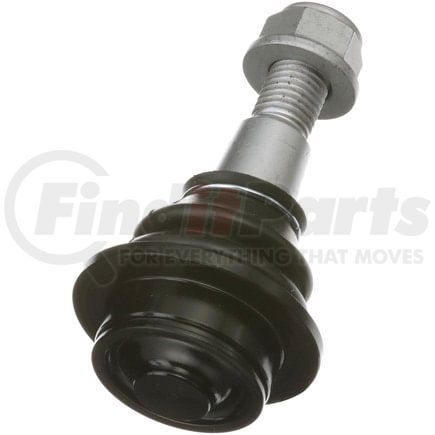

(888) 312-8812 Login SignupDELPHI TC7976 Ball Joint
Tap to view 13 more
$2049
Limited availability at this price!
In Stock
Get it by Wednesday, Jun 10
DELPHI TC7976 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Ball Joint
DELPHI TC7976 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.520 IN |
| Maximum Outside Diameter | 64.00 MM |
| Color | Black |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 64 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 1.320 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.32 IN |
| Stud Thread Length | 33.5 MM |
| Stud Type | Threaded |
| Mounting Type | Ring |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.08 IN |
| Stud Tapered End 2 Diameter | 0.99 IN |
| Stud Tapered End 2 Diameter | 25.17 MM |
| Stud Tapered End 1 Diameter | 0.79 IN |
| Stud Tapered End 1 Diameter | 20 MM |
| Stud Thread Pitch | 2 MM |
| Length | 64.00 MM |
| Length | 2.520 IN |
| Stud Thread Diameter | 0.63 IN |
| Height | 33.53 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | CN |
| UPC | 00689604367438 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC7976 Cross References
DELPHI TC7976 Fits Vehicles
- GMC Canyon (2015-2022)
- Chevrolet Colorado (2015-2022)
DELPHI TC7976 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TC7976 Manufacturer Information
Delphi® is committed to making a difference. With a global network of more than 2,400 service centers and a presence in over 150 countries, Delphi Technologies delivers OE-specific aftermarket parts and software solutions for a wide range of passenger vehicles, light and medium commercial vehicles, heavy-duty truck and commercial vehicles, as well as agricultural, marine, and industrial equipment. The company’s comprehensive product portfolio includes components for diesel fuel systems, engine management, gasoline fuel systems, vehicle electronics, and maintenance solutions. Delphi Technologies takes pride in its state-of-the-art manufacturing facility as well as OE-level diagnostic and test equipment that produces OE-quality aftermarket components to make vehicles and trucks run cleaner, drive better, and last further.
DELPHI TC7976 Questions & Answers
No questions yet
Be the first to ask a question about this product!
