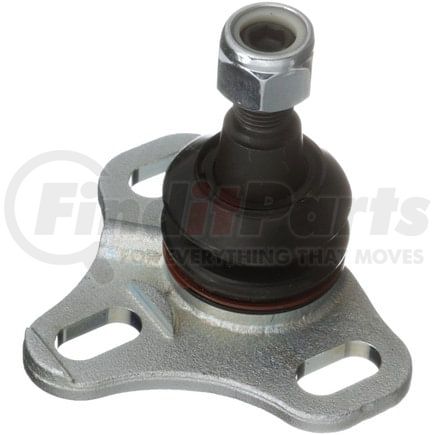

Delphi TC6947 - Ball Joint
$18899
In stock
limited availability at this price!
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Lower |
| Material | Steel |
| Color | Silver |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | No |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 112.26 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.480 IN |
| Mounting Bolt Length | 37.46 MM |
| Washers Included | Yes |
| Height | 3.750 IN |
| Height | 95.25 MM |
| Nuts Included | No |
| Mounting Hole Quantity | 3 |
| Adjustable | Yes |
| Greaseable | Yes |
| Stud Thread Length | 1.18 IN |
| Stud Thread Length | 29.84 MM |
| Wrench Size | 19mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 83.82 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.470 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 1.180 IN |
| Mounting Bolt Thread Length | 29.84 MM |
| Mounting Bolt Thread Diameter | 12.00 MM |
| Mount Plate Included | Yes |
| Tapered Stud | Yes |
| Stud Thread Pitch | 1.5 MM |
| Stud Thread Diameter | 0.63 IN |
| Mounting Bolt Thread Diameter | 0.470 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | US |
| UPC | 00689604381663 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Fits Vehicles
- Ram ProMaster 3500 (2014-2021)
- Ram ProMaster 2500 (2014-2021)
- Ram ProMaster 1500 (2014-2021)
