(888) 312-8812 Login SignupGOODYEAR BELTS D104 D104 Classic Wrapped V-Belt: D Profile,108.70 Effective Length
Tap to view 2 more
$10899
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
GOODYEAR BELTS D104 Part Description
Manufacturer
Product Description

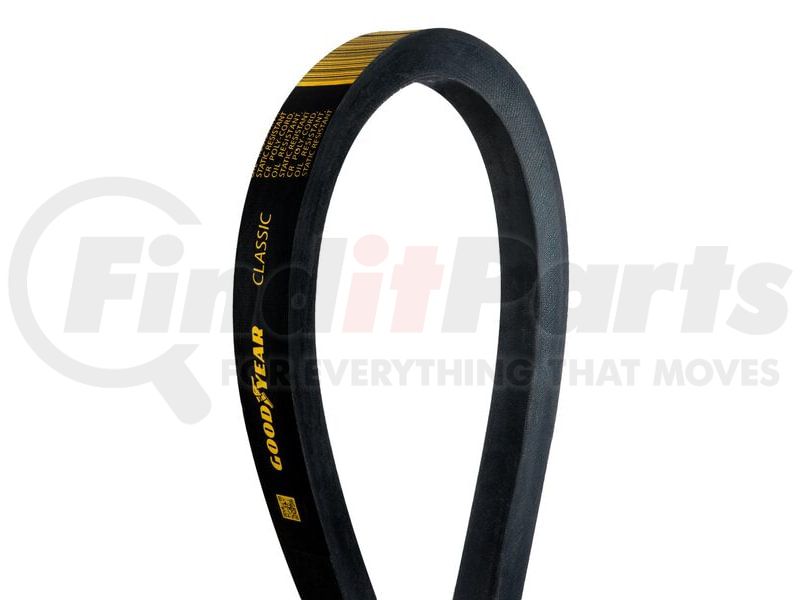

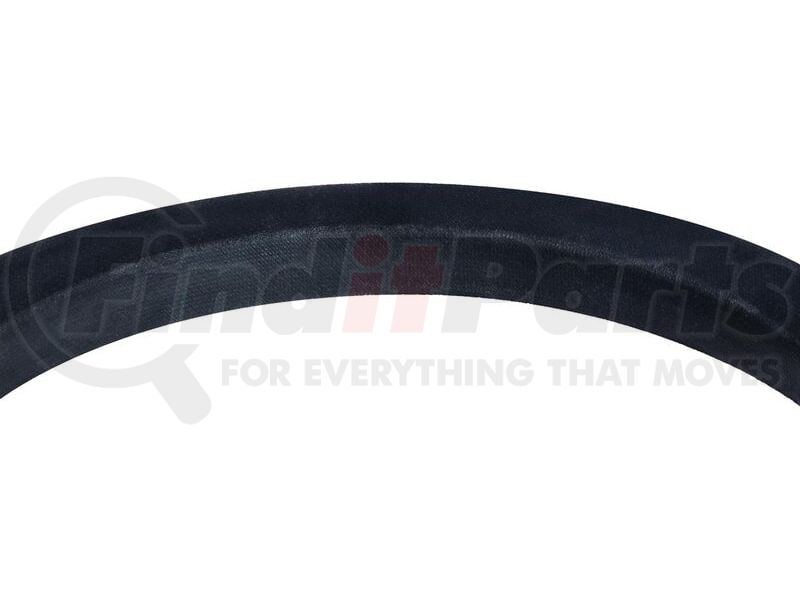

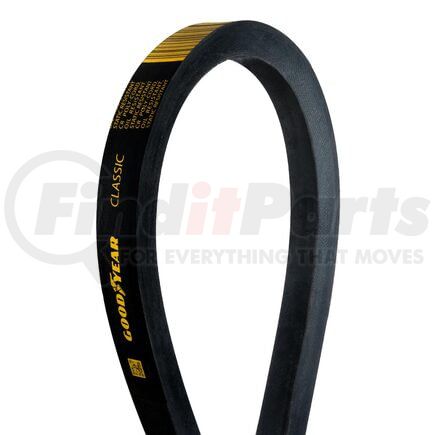

D104 Classic Wrapped V-Belt: D Profile,108.70 Effective Length

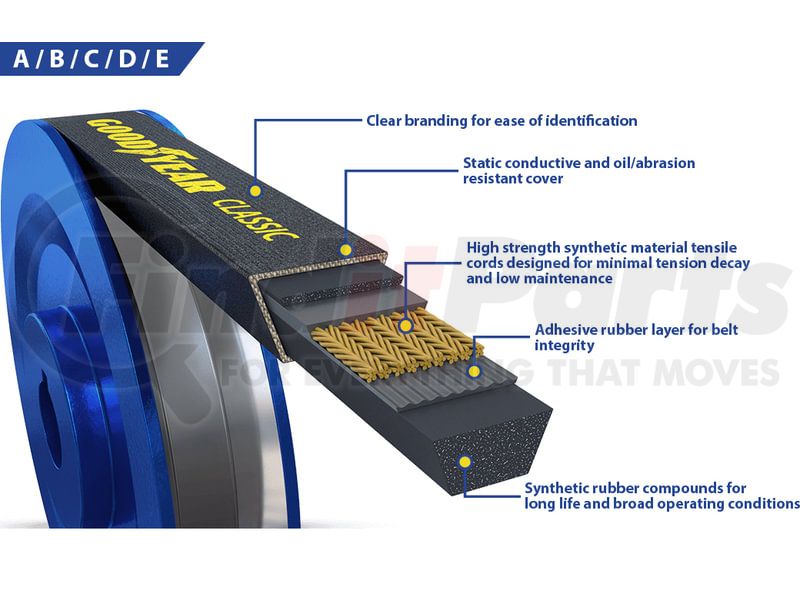

Features & Benefits
- Static resistant
- Oil resistant
- Long-life friction resistant cover
- High strength tensile cords designed for minimal tension decay and low maintenance
- Engineered to perform consistently across a wide temperature range, making them suitable for diverse operating environments.
D104 Classic Wrapped V-Belt: D Profile,108.70 Effective Length
GOODYEAR BELTS D104 Specifications
Product Attributes
| Angle | 40 DD |
| Belt Material | Synthetic Rubber (SBR) |
| Belt Type | Classic Wrapped |
| Cord Material | Polyester |
| Cross Section Designation | D |
| Effective Length | 108.70 in |
| Effective Length | 2761 mm |
| Grade Type | OE Performance |
| Maximum Operating Temperature | 60 CE |
| Maximum Operating Temperature | 140 FA |
| Minimum Operating Temperature | -30 CE |
| Minimum Operating Temperature | -22 FA |
| Outside Circumference | 2766 mm |
| Outside Circumference | 108.90 in |
| Rib Quantity | 1 |
| Strand Quantity | 1 |
| Thickness | 0.748 in |
| Thickness | 19.00 MM |
| Top Width | 1.260 in |
| Top Width | 32.0 mm |
Additional Information
| Warranty Special | 1 Year Limited Warranty |
| Warranty Special UOM | TX |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Stock Status | S |
| UPC | 00195199007548 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GOODYEAR BELTS D104 Part Interchanges
| Brand | Part Number |
|---|---|
| Carlisle | DP104 |
| Gates | D104 |
GOODYEAR BELTS D104 Manufacturer Information
When it comes to rubber tires, few brands are held in such high esteem as Goodyear®. Founded in 1898, the Goodyear Tire and Rubber Company is one of the oldest and largest tire companies in the world. In its more than a century in business, Goodyear has been a dominant force in the industry, manufacturing tires and related rubber products for a wide range of applications, including passenger cars, light and commercial trucks, buses, motorcycles, racing cars, airplanes, farm and mining equipment, and so much more. Today, the company remains one of the top four tire manufacturers with 46 facilities across 21 countries worldwide.
