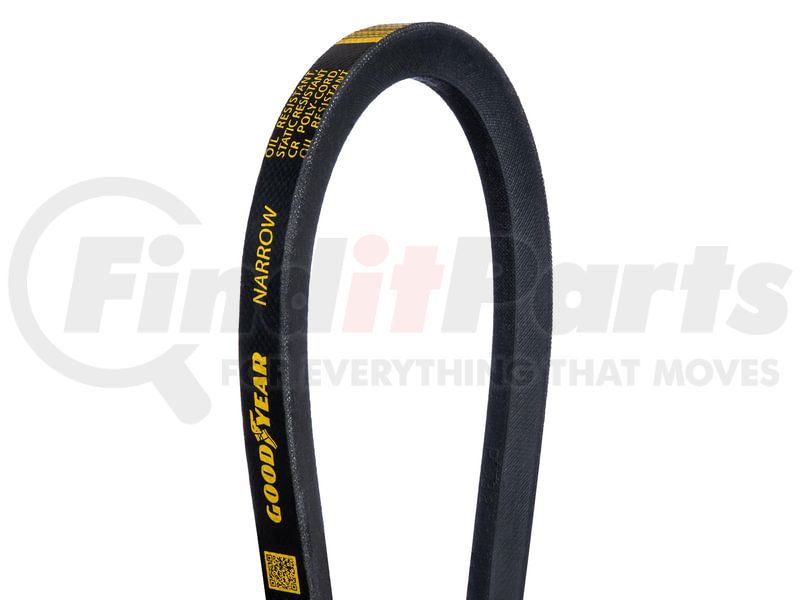

GOODYEAR BELTS 3V830 Part Description
Manufacturer
Product Description
Narrow Wrapped V-Belt: 3V Profile, 83" Effective Length

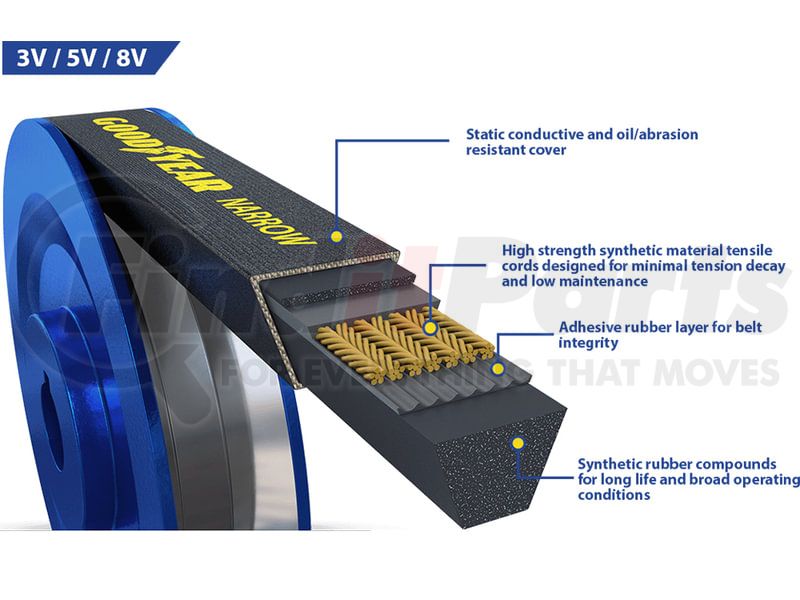

Features & Benefits
- Static resistant
- Oil resistant
- Long-life friction resistant cover
- High strength tensile cords designed for minimal tension decay and low maintenance
- Available in 3V, 5V, and 8V profiles, these belts can accommodate various pulley diameters and belt speeds, offering versatility for different applications.
Narrow Wrapped V-Belt: 3V Profile, 83" Effective Length
GOODYEAR BELTS 3V830 Specifications
Product Attributes
| Angle | 40 DD |
| Belt Material | SBR Blend |
| Belt Type | Narrow Wrapped |
| Cord Material | Polyester |
| Cross Section Designation | 3V |
| Effective Length | 2108 mm |
| Effective Length | 83.00 in |
| Grade Type | OE Performance |
| Maximum Operating Temperature | 140 FA |
| Maximum Operating Temperature | +60 CE |
| Minimum Operating Temperature | -22 FA |
| Minimum Operating Temperature | -30 CE |
| Outside Circumference | 83.37 in |
| Outside Circumference | 2118 mm |
| Rib Angle | 40º DD |
| Rib Quantity | 1 |
| Strand Quantity | 1 |
| Thickness | 8.00 MM |
| Top Width | 0.382 in |
| Top Width | 9.7 mm |
Additional Information
| Warranty Special UOM | LT |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Stock Status | S |
| UPC | 00195199010265 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GOODYEAR BELTS 3V830 Part Interchanges
| Brand | Part Number |
|---|---|
| Gates | 3V830 |
GOODYEAR BELTS 3V830 Manufacturer Information
When it comes to rubber tires, few brands are held in such high esteem as Goodyear®. Founded in 1898, the Goodyear Tire and Rubber Company is one of the oldest and largest tire companies in the world. In its more than a century in business, Goodyear has been a dominant force in the industry, manufacturing tires and related rubber products for a wide range of applications, including passenger cars, light and commercial trucks, buses, motorcycles, racing cars, airplanes, farm and mining equipment, and so much more. Today, the company remains one of the top four tire manufacturers with 46 facilities across 21 countries worldwide.
