(888) 312-8812 Login SignupCENTRIC 125.67063 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 125.67063 Part Description
Manufacturer
Product Description

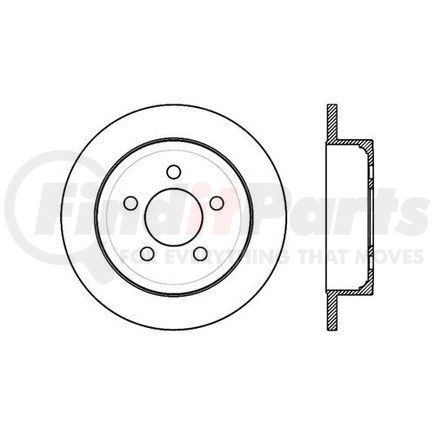

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

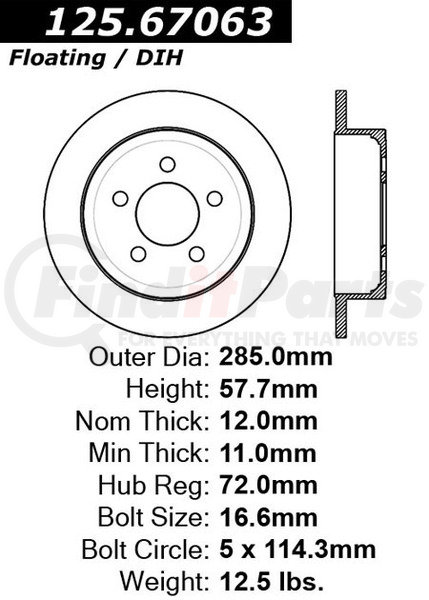

CENTRIC 125.67063 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Max Pb Drum Dia [cntrc] Mm | 184.700 |
| Max Pb Drum Dia [cntrc] In | 7.272 |
| Weight [cntrc] Kgs | 5.680 |
| Weight [cntrc] Lbs | 12.500 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 0.433 IN |
| Discard Thickness | 11.000 MM |
| Nominal Thickness | 12.000 MM |
| Nominal Thickness | 0.472 IN |
| Hat Finish | Painted |
| Overall Height | 57.900 MM |
| Overall Height | 2.280 IN |
| Outside Diameter | 285.000 MM |
| Outside Diameter | 11.220 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 184.000 MM |
| Nominal Drum Diameter | 7.244 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.835 IN |
| Center Hole Diameter | 72.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.654 IN |
| Stud/Lug Hole Diameter | 16.600 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890439318 |
CENTRIC 125.67063 Cross References
CENTRIC 125.67063 Fits Vehicles
- Jeep TJ (2003-2006)
- Jeep Wrangler (2003-2006)
- Jeep Liberty (2003-2007)
