(888) 312-8812 Login SignupCENTRIC 125.65086 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 1 more
$154.98
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 125.65086 Part Description
Manufacturer
Product Description

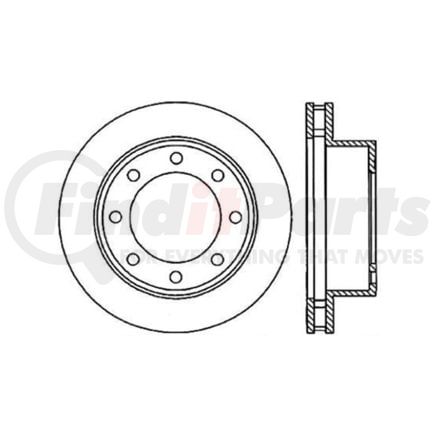

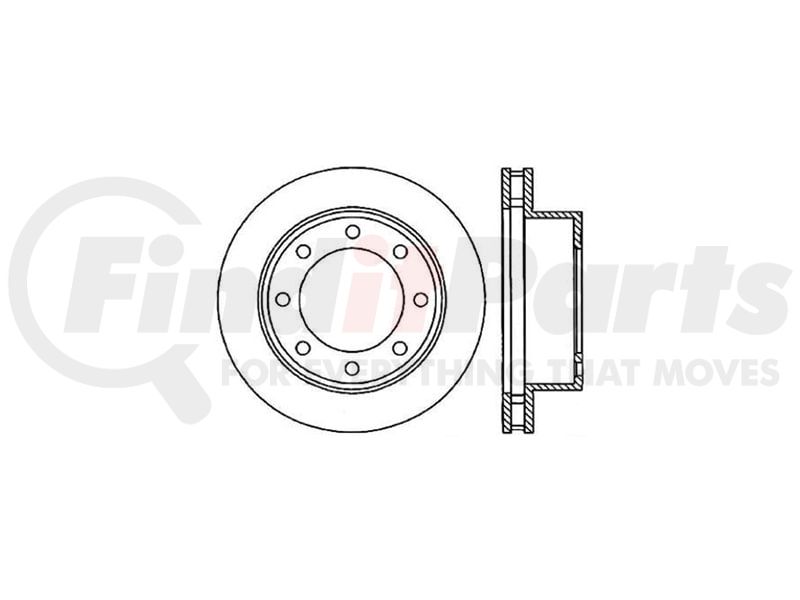

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

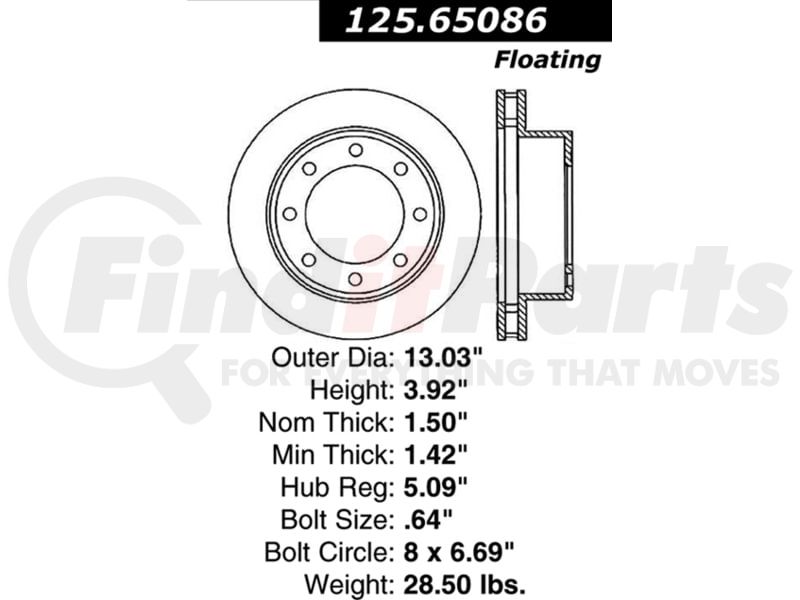

CENTRIC 125.65086 Specifications
Product Attributes
| Weight [cntrc] Kgs | 12.950 |
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Pillar |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Lbs | 28.500 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 1.417 IN |
| Discard Thickness | 36.000 MM |
| Nominal Thickness | 1.496 IN |
| Nominal Thickness | 38.000 MM |
| Hat Finish | Painted |
| Overall Height | 3.917 IN |
| Overall Height | 99.500 MM |
| Outside Diameter | 331.000 MM |
| Outside Diameter | 13.031 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 129.200 MM |
| Center Hole Diameter | 5.087 IN |
| Mounting Bolt Hole Circle Diameter | 6.693 IN |
| Mounting Bolt Hole Circle Diameter | 170.000 MM |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 16.200 MM |
| Stud/Lug Hole Diameter | 0.638 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890132981 |
CENTRIC 125.65086 Cross References
CENTRIC 125.65086 Fits Vehicles
- Ford F-350 Super Duty (1999-2004)
- Ford F-250 Super Duty (1999-2004)
- Ford Excursion (2000-2005)
