CENTRIC 123.67009 Part Description
Manufacturer
Product Description

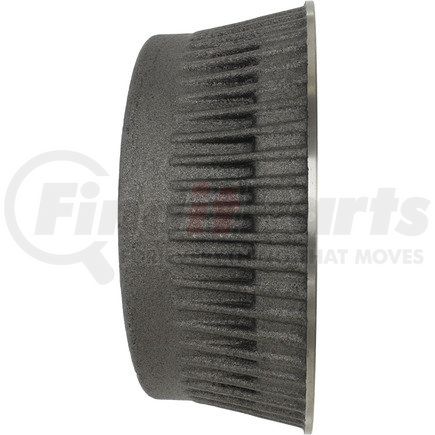

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.67009 Specifications
Product Attributes
| Weight [cntrc] Kgs | 6.818 |
| Weight [cntrc] Lbs | 15.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Hub Hole / Register [cntrc] Mm | 57.404 |
| Hub Hole / Register [cntrc] In | 2.260 |
| Height [cntrc] Mm | 104.902 |
| Height [cntrc] In | 4.130 |
| Friction Surface Width [cntrc] Mm | 72.644 |
| Friction Surface Width [cntrc] In | 2.860 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 231.000 MM |
| Maximum Brake Diameter (Discard) | 9.094 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 279.908 MM |
| Outside Diameter | 11.020 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 14.224 MM |
| Mounting Hole Diameter | 0.560 IN |
| Nominal Drum Diameter | 228.500 MM |
| Nominal Drum Diameter | 8.996 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890053149 |
CENTRIC 123.67009 Cross References
| Brand | Part Number |
|---|---|
| 122.67009, F1FZ14290BR | |
| N/A | 52-60831, BD60831, 5260831, E127-72-014, E128-72-014, 8954, BD8954, 63 91 610, D91 610, 112916, 8954G, 872, 100761, 4313760, 203541, 140505, 140506, PDR0506, 6401459, 440-1459, 751, AD8709, AD8709E, D9322, E9239, E12772014, 87294, YH140506, 23007, X21681, BD1501, 102916, 2916, 2916R, 2914DGS, 2916DGS, 78840009, 8840009, 78-40009, 7840009, 68120, 36540031 |
| PRONTO | BD8954 |
| RAYBESTOS | 2916R |
| WAGNER | BD60831 |
CENTRIC 123.67009 Fits Vehicles
- Plymouth Voyager (1986-1995)
- Plymouth Grand Voyager (1987-1995)
- Dodge Mini Ram (1986-1988)
- Dodge Grand Caravan (1988-1995)
- Dodge Caravan (1986-1995)
- Chrysler Town & Country (1990-1995)
