(888) 312-8812 Login SignupCENTRIC 123.65037 C-Tek Standard Brake Drum
Tap to view 4 more
$6249
Limited availability at this price!
In Stock
Get it by Monday, Jul 6
CENTRIC 123.65037 Part Description
Manufacturer
Product Description

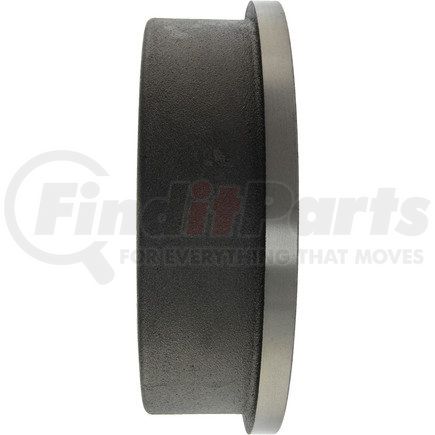

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.65037 Specifications
Product Attributes
| Weight [cntrc] Kgs | 6.364 |
| Weight [cntrc] Lbs | 14.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 71.120 |
| Hub Hole / Register [cntrc] In | 2.800 |
| Height [cntrc] Mm | 87.884 |
| Height [cntrc] In | 3.460 |
| Friction Surface Width [cntrc] Mm | 72.390 |
| Friction Surface Width [cntrc] In | 2.850 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 256.300 MM |
| Maximum Brake Diameter (Discard) | 10.090 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 297.942 MM |
| Outside Diameter | 11.730 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.224 MM |
| Mounting Hole Diameter | 0.560 IN |
| Nominal Drum Diameter | 254.000 MM |
| Nominal Drum Diameter | 10.000 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890052883 |
CENTRIC 123.65037 Cross References
| Brand | Part Number |
|---|---|
| 9498DGS, 9498, 109498, 52-125134, 52125134, BD125134, BD180201 | |
| MAGMA PRODUCTS | PMU20082 |
| N/A | BD180201, BD125134, 52125134, 52-125134, E128-70-042, 22115, 8989, BD8989, D92030, 22115G, 8989G, 1087, ZZL026251, 100976, F07Z1126A, 140697, PDR0697, PDR0810, 202891, 6401657, 1007, AD8537E, D9420, E12870042, 87498, X21742, 23020, BD1602, 109498, 9498, 9498DGS, 9498R, 19524, 78842037, 68210, 36554075 |
| PRONTO | BD8923 |
| RAYBESTOS | 9498, 9498R |
| WAGNER | BD125134, BD125710 |
CENTRIC 123.65037 Fits Vehicles
- Mazda B4000 (1998-2010)
- Mazda B3000 (1998-2008)
- Mazda B2500 (1998-2001)
- Mazda B2300 (2001-2010)
- Mazda Navajo (1991-1994)
- Ford Ranger (1998-2009)
- Ford Explorer (1991-1994)
