BCA WE61836 Gen 3 Wheel Hub Assembly

★★★★★ (0)

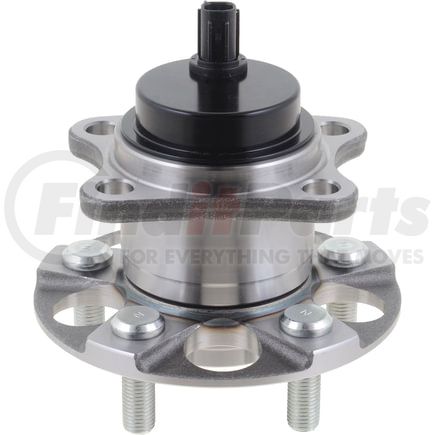

BCA WE61836 Wheel Bearing and Hub Assembly Gen 3 Wheel Hub Assembly
BCA
Tap to view 4 more

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

BCA WE61836 Part Description

Manufacturer

BCA

Product Description

Gen 3 Wheel Hub Assembly

Features & Benefits

  • All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
  • Forged-steel construction provides the toughness and durability required for even the harshest applications.
  • Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
  • Application-specific components to ensure proper connection and performance of the ABS module and sensors.
  • Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
  • Application-specific engineering reduces noise, vibration and harshness (NVH).
Gen 3 Wheel Hub Assembly

BCA WE61836 Specifications

Product Attributes

Knuckle Pilot Hole Diameter2.91 IN
Knuckle Bolt Circle Diameter95 MM
Knuckle Bolt Hole Size12.5 MM
Flange Quantity2
Flange IncludedYes
Flange Bolt Hole Quantity4
Wheel Stud Size12 MM
Wheel Pilot Diameter2.16 IN
Brake Pilot Diameter60 MM
Wheel Stud Quantity5
Flange ShapeModified Rectangular
Anti Lock Braking SystemYes
Anti Lock Braking System TypeEncoder with Sensor
Bearing GenerationGen 3
Drive TypeNon-driven
Bearing TypeBall
Flange Offset2.12 IN
Weight2.65 Kg
Flange Diameter134.9 MM
Wheel Stud Thread Pitch1.5 MM
Bolt Circle Diameter3.94 IN
Flange Diameter5.31 IN
Bolt Circle Diameter100 MM
Wheel Pilot Diameter55 MM
Brake Pilot Diameter2.36 IN
Flange Offset54 MM
Knuckle Pilot Hole Diameter73.9 MM
Knuckle Bolt Circle Diameter3.74 IN
Knuckle Bolt Hole Size0.49 IN
Weight5.842 lb
Wheel Stud Thread SizeM12 - 1.5

Additional Information

Country of Origin (Primary)KR
Harmonized Tariff Code (Schedule B)8708995800
Harmonized Tariff Code (HTS)8708995800
Warranty Time12
Warranty Time UOMMO
UPC00662810618365
VMRS Code018005000

BCA WE61836 Cross References

BrandPart Number
Autopart International1411-424988
Beck/Arnley051-6436
Centric Parts407.44022E, 407.44022
DuraGo29594006
GMB7703060
Lexus4245047040
MOOG Chassis Products512505
MPAWH590373
MevotechMB86305
SKFBR930931
Schaeffler103284
TimkenHA590373, HA590531
Toyota4245047040
WJBWA512505

BCA WE61836 Fits Vehicles

  • Suzuki Aerio (2002)
