(888) 312-8812 Login SignupCENTRIC 123.63027 C-Tek Standard Brake Drum
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 123.63027 Part Description
Manufacturer
Product Description

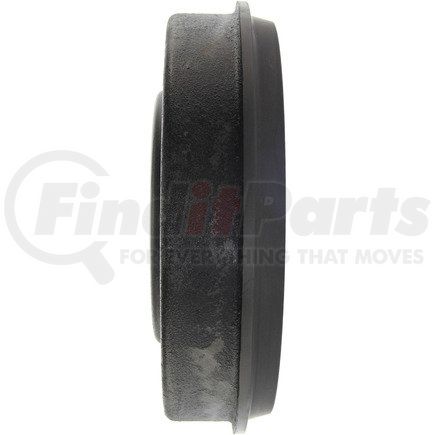

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 123.63027 Specifications
Product Attributes
| Weight [cntrc] Kgs | 4.318 |
| Weight [cntrc] Lbs | 9.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Hub Hole / Register [cntrc] Mm | 57.404 |
| Hub Hole / Register [cntrc] In | 2.260 |
| Height [cntrc] Mm | 67.564 |
| Height [cntrc] In | 2.660 |
| Friction Surface Width [cntrc] Mm | 47.752 |
| Friction Surface Width [cntrc] In | 1.880 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 221.200 MM |
| Maximum Brake Diameter (Discard) | 8.709 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 250.952 MM |
| Outside Diameter | 9.880 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.224 MM |
| Mounting Hole Diameter | 0.560 IN |
| Nominal Drum Diameter | 218.440 MM |
| Nominal Drum Diameter | 8.600 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890140665 |
CENTRIC 123.63027 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | BD60675, 8931, BD8931, 123.63027, 8931G, 4238538, 4293195, 203311, 140410, PDR0410, 6401374, 826, AD8327, AD8327E, D2904, 87245, X21644, BD1456, 2904, 2904R, 2904DGS, 8832027, 78832027, 36540015, 177324 |
CENTRIC 123.63027 Fits Vehicles
- Chrysler Executive Limousine (1985-1986)
- Chrysler Daytona (1984-1986)
- Plymouth Reliant (1983-1987)
- Plymouth Caravelle (1985-1987)
- Dodge Omni (1985-1986)
- Dodge Daytona (1984-1986)
- Chrysler Town & Country (1983-1986)
- Dodge Charger (1985-1987)
- Chrysler New Yorker (1983-1987)
- Dodge Aries (1983-1987)
- Dodge 600 (1983-1988)
- Chrysler Executive Sedan (1983-1984)
- Chrysler LeBaron (1984-1986)
- Chrysler Laser (1984-1986)
- Chrysler E Class (1983-1984)
CENTRIC 123.63027 Cross References
We have 4 alternatives for the 123.63027 by CENTRIC:
