(888) 312-8812 Login SignupCENTRIC 123.62002 C-Tek Standard Brake Drum
Tap to view 4 more
$101.04
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 123.62002 Part Description
Manufacturer
Product Description

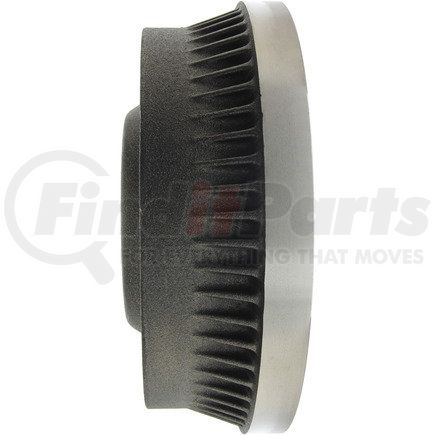

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.62002 Specifications
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 12.045 |
| Weight [cntrc] Lbs | 26.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 127.000 |
| Bolt Circle Diameter [cntrc] In | 5.000 |
| Hub Hole / Register [cntrc] Mm | 77.724 |
| Hub Hole / Register [cntrc] In | 3.060 |
| Height [cntrc] Mm | 128.270 |
| Height [cntrc] In | 5.050 |
| Friction Surface Width [cntrc] Mm | 75.184 |
| Friction Surface Width [cntrc] In | 2.960 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 307.100 MM |
| Maximum Brake Diameter (Discard) | 12.090 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 368.046 MM |
| Outside Diameter | 14.490 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 15.750 MM |
| Mounting Hole Diameter | 0.620 IN |
| Nominal Drum Diameter | 304.800 MM |
| Nominal Drum Diameter | 12.000 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890052319 |
CENTRIC 123.62002 Cross References
| Brand | Part Number |
|---|---|
| 122.62002, F1EZ17K400D | |
| N/A | BD60026, 8504, BD8504, 123.62002, 8504G, 1474174, 1475475, 1475724, 1475725, 1475743, 1476473, 1476743, 1489382, 1489392, 1489506, 1490714, 1490911, 201040, PDR0063, 140063, 6401007, 897, AD8202, AD8202E, D2104, 87205, X21007, BD1067, 102002, 2104, 2104R, 2104DGS, 8836002, 78-36002, 7836002, 78836002, 177109, 36546000 |
| PRONTO | BD8504 |
| RAYBESTOS | 2104, 2104R |
| WAGNER | BD60026 |
CENTRIC 123.62002 Fits Vehicles
- Cadillac Series 62 (1959-1964)
- Cadillac Series 60 Fleetwood (1959-1964)
- Cadillac Eldorado (1959-1966)
- Oldsmobile Delta 88 (1971-1976)
- Oldsmobile 98 (1975)
- Cadillac Brougham (1990)
- Cadillac DeVille (1959-1976)
- Cadillac Fleetwood (1965-1985)
- Cadillac Calais (1965-1976)
- Cadillac Commercial Chassis (1959-1971, 1973-1974, 1976-1989)
