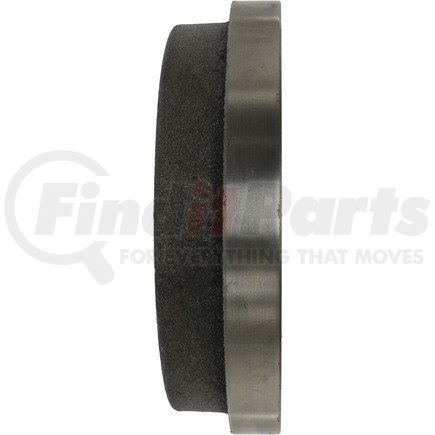

Centric 123.48015 - C-Tek Standard Brake Drum
$5699
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 5.909 |
| Weight [cntrc] Lbs | 13.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 108.200 |
| Hub Hole / Register [cntrc] In | 4.260 |
| Height [cntrc] Mm | 64.000 |
| Height [cntrc] In | 2.520 |
| Friction Surface Width [cntrc] Mm | 53.400 |
| Friction Surface Width [cntrc] In | 2.102 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 222.000 MM |
| Maximum Brake Diameter (Discard) | 8.740 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 262.200 MM |
| Outside Diameter | 10.323 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.800 MM |
| Mounting Hole Diameter | 0.504 IN |
| Nominal Drum Diameter | 220.000 MM |
| Nominal Drum Diameter | 8.661 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890140627 |
Part Interchanges
CENTRIC 123.48015 Cross Reference
We have 2 alternatives for the 123.48015 by CENTRIC:
Fits Vehicles
- Chevrolet Tracker (2000-2005, 2007-2008)
- Suzuki Vitara (2000-2004)
- Suzuki Grand Vitara (2000-2005)
