(888) 312-8812 Login SignupCENTRIC 123.48008 C-Tek Standard Brake Drum
Tap to view 4 more
$2999
Limited availability at this price!
1 Day Lead Time
Get it by Monday, Jun 29
CENTRIC 123.48008 Part Description
Manufacturer
Product Description

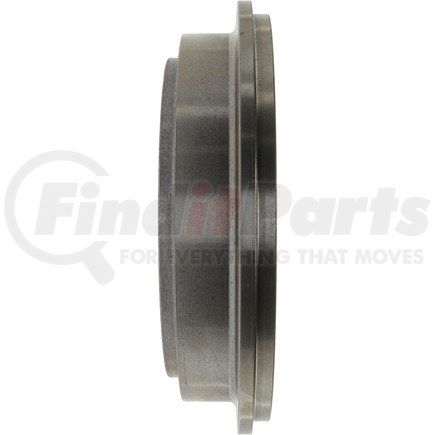

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.48008 Specifications
Product Attributes
| Misc Holes [cntrc] | 4 |
| Weight [cntrc] Kgs | 2.727 |
| Weight [cntrc] Lbs | 6.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 64.000 |
| Hub Hole / Register [cntrc] In | 2.520 |
| Height [cntrc] Mm | 51.000 |
| Height [cntrc] In | 2.008 |
| Friction Surface Width [cntrc] Mm | 36.000 |
| Friction Surface Width [cntrc] In | 1.417 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 182.000 MM |
| Maximum Brake Diameter (Discard) | 7.165 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 222.000 MM |
| Outside Diameter | 8.740 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.900 MM |
| Mounting Hole Diameter | 0.508 IN |
| Nominal Drum Diameter | 180.000 MM |
| Nominal Drum Diameter | 7.087 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890052098 |
CENTRIC 123.48008 Cross References
| Brand | Part Number |
|---|---|
| 122.48008, F1EZ15K867D | |
| MAGMA PRODUCTS | PMU22094 |
| N/A | BD125615, 0802687, 0832687, 35031, BD35031, 4351150G50, 35027, 116508, 35031G, 971, 30013273, 100860, 240490, 140677, PDR0677, 6401706, JBD199, JBD199E, D9459, 87624, 21097, 9624, 9624DGS, 9624R, 8810014, 78810014, 36550005 |
| RAYBESTOS | 9624, 9624R |
| WAGNER | F116472, BD125615 |
CENTRIC 123.48008 Fits Vehicles
- Geo Metro (1995-1997)
- Chevrolet Metro (1998-2000)
- Suzuki Swift (1995-2001)
