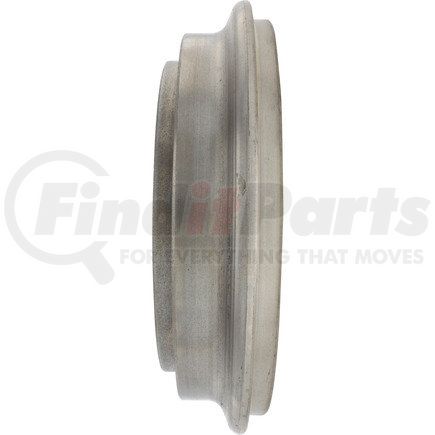

(888) 312-8812 Login SignupCENTRIC 123.48006 C-Tek Standard Brake Drum
Tap to view 4 more
$3999
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 23
CENTRIC 123.48006 Part Description
Manufacturer
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.48006 Specifications
Product Attributes
| Weight [cntrc] Kgs | 4.545 |
| Weight [cntrc] Lbs | 10.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 64.000 |
| Hub Hole / Register [cntrc] In | 2.520 |
| Height [cntrc] Mm | 56.600 |
| Height [cntrc] In | 2.228 |
| Friction Surface Width [cntrc] Mm | 39.900 |
| Friction Surface Width [cntrc] In | 1.571 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 202.000 MM |
| Maximum Brake Diameter (Discard) | 7.953 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 245.000 MM |
| Outside Diameter | 9.646 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.700 MM |
| Mounting Hole Diameter | 0.500 IN |
| Nominal Drum Diameter | 199.700 MM |
| Nominal Drum Diameter | 7.862 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890083023 |
CENTRIC 123.48006 Cross References
| Brand | Part Number |
|---|---|
| 122.48006, F1EZ15K867B | |
| MAGMA PRODUCTS | PMU22071 |
| N/A | BD125268, 0832493, 35018, 35065, BD35018, 63 78 050, 35065G, 35018G, 116510, 983, 4309184000000, 4351163B00, 4351163B10, 96066531, 4351160B20, 140652, PDR0652, 240000, 6401673, DB4270, JBD196, 100872, 87534, 9534, 9534R, 9534DGS, 8810011, 36550004 |
| PRONTO | BD35018 |
| RAYBESTOS | 9534, 9534R |
| WAGNER | BD125268 |
CENTRIC 123.48006 Fits Vehicles
- Geo Metro (1992-1997)
- Chevrolet Metro (1998-2001)
- Suzuki Swift (1990-1994)
